Brand: Chinese Electric Bus Company
Model: BJ6105
Dimension:11400*2540*3150
Seat No.:33
Wheelbase(mm):5650
Engine Model:ISBE185 32, ISBE220 31,YC6J220-30 31、YC6J220-30
download
Whatsapp
Model |
Chinese Electric Bus Company-BJ6105 |
| Dimension (LxWxH)(mm) | 11400*2540*3150 |
| G.V.W.(kg) | 15500 |
| Seat No. | 33 |
| Wheelbase(mm) | 5650 |
| Min. Ground Clearance(mm) | 136 |
| Max. Gradeability(%) | ≥20 |
| Max. Speed (km/h) | ≥80 |
| Fuel Tank Capacity(L) | 210 |
| Fuel Consumption(L/100km) | ≤15 |
| Engine Model | ISBE185 32, ISBE220 31,YC6J220-30 31、YC6J220-30 |
| Max Power/Rev. (KW (ps) /rpm) | 177,206,191 |
| Gear Box | American Eaton 6 speed automatic transmission |
| Clutch | American Eaton diaphragm spring clutch |
| Front Axle | ZF low floor axle |
| Rear axle | ZF low floor driving rear axle with hub reduction gear |
| Suspension System | Air suspension system |
| Steering System | Power steering |
| Tyre | 295/80R22.5, 275/70R22.5 |
| Air Conditioner | Overhead non-independent air-conditioner 33.000kcal/h) for option |
| Door and Door Pump | Front/middle pneumatic controlled dual plate inner-swing passenger door |
| Body Interior Trimming | Profiled interior trimming, with aluminum AC conduit |
| Option | Fan for driver(not available when ac is equipment, Inside review mirror, launder(extended till under driver window), fire extinguisher, Safety hammer, stainless wheel cover, manually sliding ramp for wheel chair. |

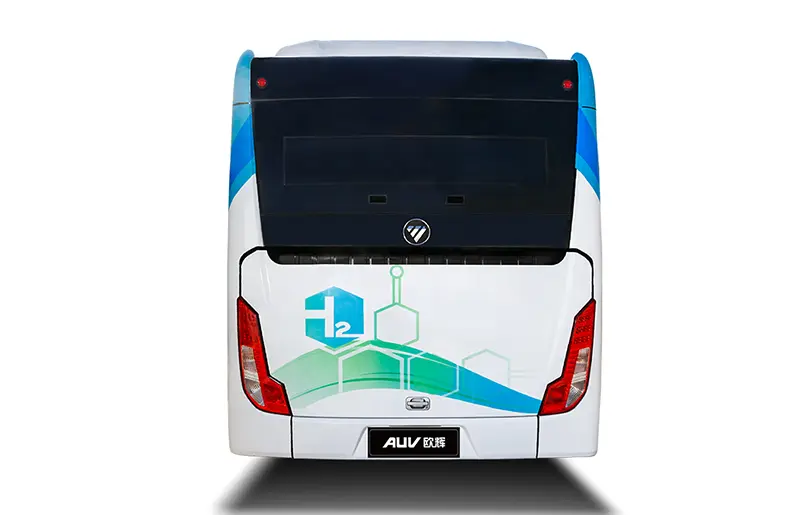

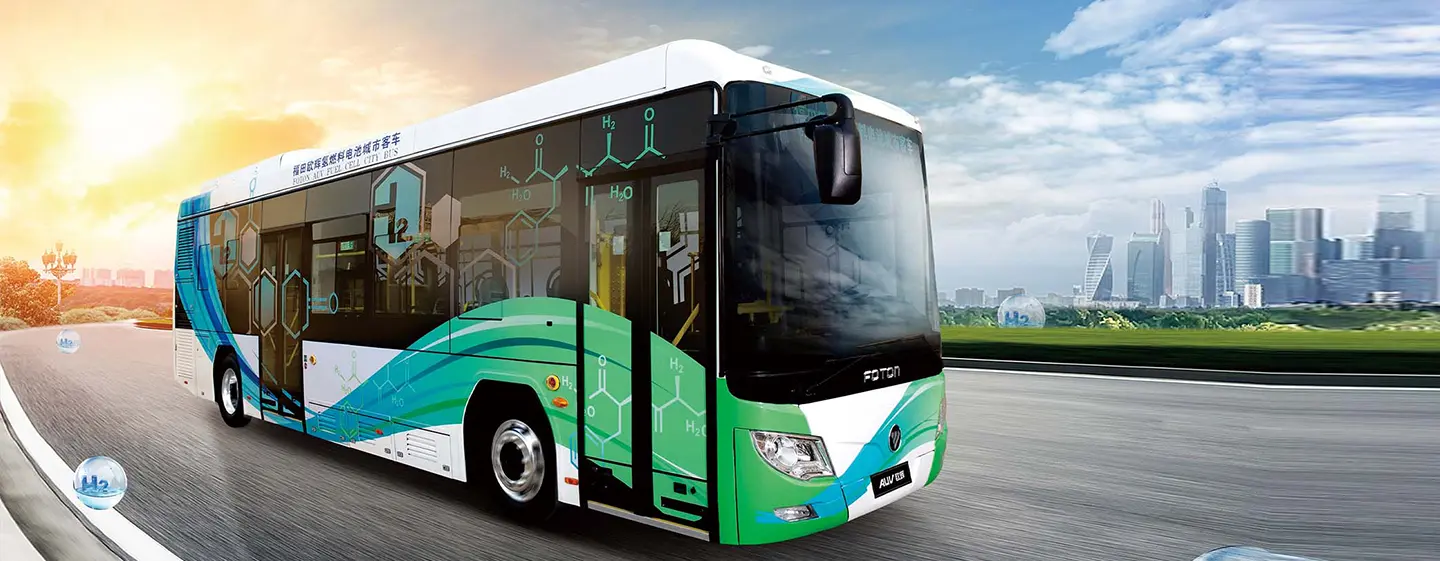

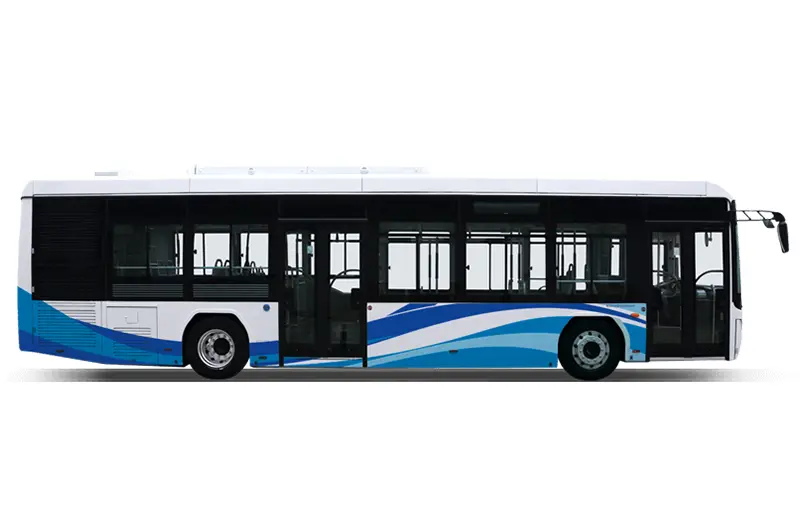

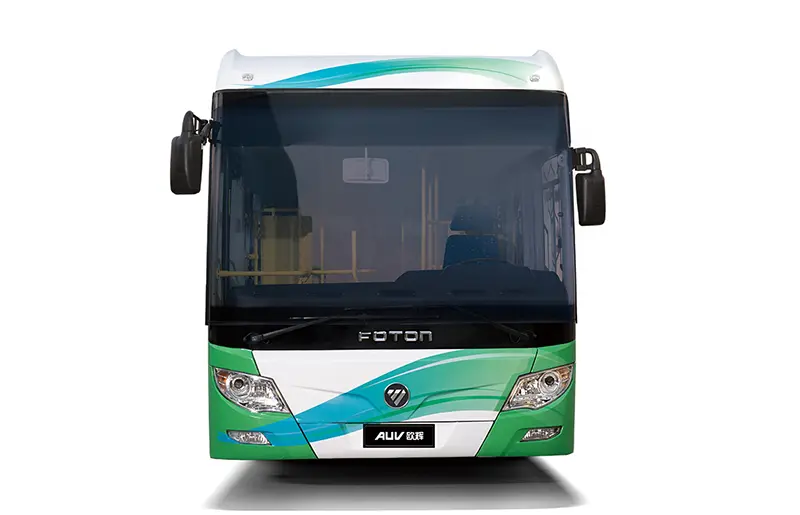

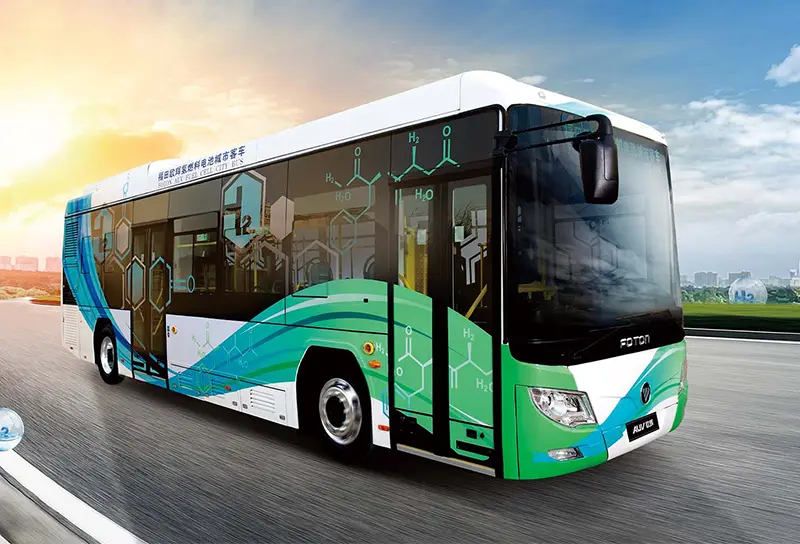

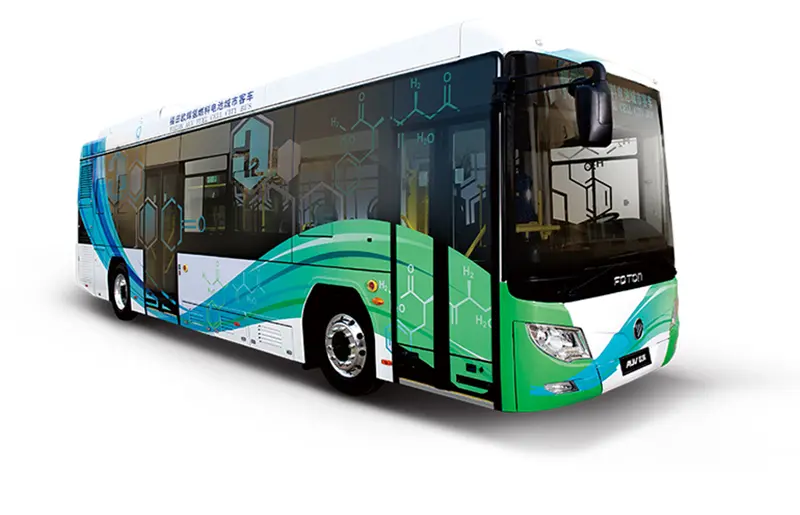

Chinese Electric Bus Company-BJ6105 Hydrogen Fuel Cell City Bus
BJ6105 is suitable for large and medium-sized city trunk bus routes to meet the peak operational needs of large and medium-sized cities; it allows passengers to experience the intelligent and efficient, green and environmentally friendly as well as safe and reliable hydrogen fuel cell buses in a relaxing and comfortable environment.
Chinese Electric Bus Company-Long-lasting power and powerful range
The range is more than 400 kilometers, with long-lasting power and stable performance.
Integrated thermal management system of the whole vehicle reduces energy consumption for heating in winter.
Shared battery thermal management, single vehicle weight reduction of 35KG.
Chinese Electric Bus Company-Quick hydrogen refueling and efficient operation
A single hydrogen refueling takes only 10-15 minutes, effectively ensuring operation.
New thermal management technology for power battery, fast warming up and cooling down to meet special seasonal operation requirements.
Chinese Electric Bus Company-Ultimate cleanliness, leading the future
Completely zero emission, hydrogen fuel cell engine products are only electricity/heat/water.
The world’s leading dry film technology fuel cell, technical strength to protect the environment.
Chinese Electric Bus Company-Multi-safety and peace of mind
All-round safety protection: forward collision warning + 360° surround view + low speed warning + lane departure warning + collision protection system.
Hydrogen-electricity-collision multiple coupling technology, real-time monitoring of hydrogen, electricity and collision safety, multiple warning functions, safer.
Fuel cell performance beyond the national standard, simulation of various scenarios of safety testing to ensure vehicle safety and security.
