Cab body type: GTL flat roof&standard floor
Drive style : 8×4
Maximum GVW/GCW（kg）: 65000
Curb weight（kg）:15500
Engine:Cummins X12EVID470
download
Whatsapp
| Cab body type | GTL flat roof&standard floor | ||
| Drive style | 8×4 | ||
| Dimension | Overall dimensions (L×W×H,mm) | 9460×2550×3650 | |
| Inner cargo (L×W×H,mm) | 6500×2300×1630 | ||
| Wheelbase(mm) | 2100+2750+1400 | ||
| Mass | Maximum GVW/GCW(kg) | 65000 | |
| Curb weight(kg) | 15500 | ||
| Payload/Seats | 49370kg/2 | ||
| Power system | Engine | Engine model | Cummins X12EVID470 |
| Emission | EURO VI | ||
| Displacement(L) | 11.8 | ||
| Power(ps) | 470 | ||
| Max Torque(N.m/rpm) | 2300/1000-1400 | ||
| Transmission | 12TX2421TD，PTO + retarder | ||
| Chassis system | Rear axle(Ton/ratio) | 16t/4.76 | |
| Frame(mm) | 225/320×80×(8+7) | ||
| Suspension | Front: 10 leaf springs, Rear: 12 leaf springs | ||
| Tyre Model | 385/65R22.5+315/80R22.5 | ||
| Other configurations & performance | Minimum ground clearance(mm) | 310 | |
| Maximum speed(km/h) | 74 | ||
| Maximum gradability(%) | 37 | ||
| Dump truck specification | Material :NM450，bottom thickness 10mm，side thickness 8mm;
Front lift, HYVA 157 cylinder. |
||
| Product features | 1.The most reliable dump truck: the whole body is made of 1mm, 610L high-strength steel, meeting the highest European standard of ECE-R93, the only cab with damping collision setback technology, life guarding, Fokon iBrake 3.0 engine in-cylinder braking, braking power 400 hp, no need to add a drenching tank, reducing fuel consumption, saving brake pads and tyres; 2.Higher passability; 3.The most fuel-efficient heavy truck: synchronised with Europe’s leading fourth-generation AMT technology, transmission efficiency 99.7% ,first in the industry, lower fuel consumption, easy start, joint engine optimal torque; automatic calculation of vehicle weight and road slope; can easily drive on slopes or complex road conditions in mountainous areas/mining pits; reduce the risk of skidding; easy to drive for both new and experienced drivers. |
||

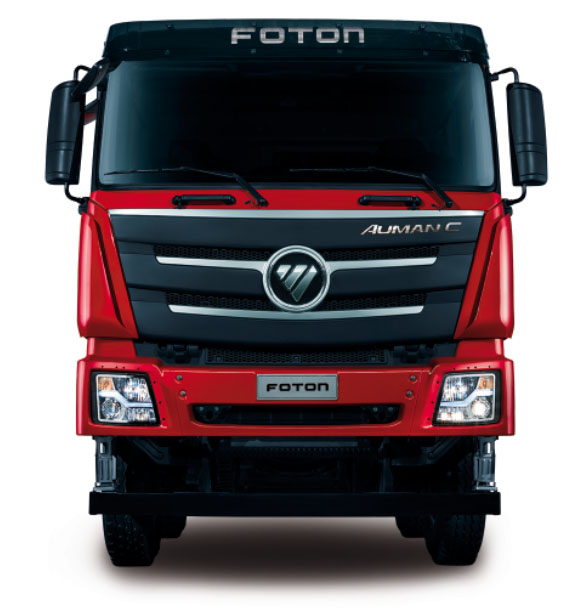

FOTON Auman GTL 8X4 Dump Truck, upgrade and evolve. Based on customer needs and relying on forward -looking thinking and technological innovation, Oman GTL heavy cards, fuel -saving, reliable, safe, and comfortable upgraded and evolved.
The new generation of fuel -saving motivation
● Upgrade the high -efficiency turbocharger, the intake efficiency increases by 30%, and the combustion is more sufficient;
● The industry’s optimal electric silicon oil high -speed fan blades, high temperature work does not open, the combustion efficiency is higher;
● Module, lightweight design, lowering 200kg, lower fuel consumption;
● Application of advanced LKZ oil piston, decreased friction by 15%, and can reduce at most 50%of the oil consumption.
Super power chain one -chain oil -saving
● China Automobile Research Authority Evaluation, transmission efficiency 99.7%of the industry first in the industry;
● Based on Oman’s entire vehicle, 103 industrial conditions+253 scenes are customized and matched;
● The bottom -layer data of the entire vehicle & power chain is open and shared, all application software integrated coordinated control, 70%ultra -wide economic fuel consumption speed range.
5 million users around the world choose together
In the 15th year of Cummins in the world, there are 5 million units in the world;
In China, Fukang and Ouman have completed 23,000 hours, 16 million kilometers of integration, three high -level limits of work conditions.
The engine strength is comprehensively improved, and it is more reliable
● Optimization of cylinder structure mechanics structure, through 10 million and 1.5 times working pressure test design; 250,000 simulated cylinder impact test.
● All upgrade flash -plated technology steel piston, higher compression ratio, more resistant to high temperature, increased wear resistance by 30%.
● Upgrade the dual -cylinder air compressor, increase the amount of anesthesia by 78%, fast thermal speed and efficiency, extend the service life.
● Use Crutonite low nickel alloy exhaust valve to improve heat fatigue strength.
The only foreseeable service in the intelligent power management industry
● Intelligent emissions and thermal management control.
● Intelligent vehicle control system.
● Foreseeable service.
FOTON Auman GTL Dump Truck Interior
