Brand: Foton AUMARK S
GVW: 3.5/4.5/6/7.5/9.0/12/14T
Body: 1730/1880/2060b
Brake: Hydraulic/Air
Cabin Type: Single/Double/Half row
download
Whatsapp
| Vehicle Brand | FOTON | |
| Vehicle Series | Aumark | |
| Vehicle Model | BJ1088 | |
| Country of Manufacture | China | |
| Driving Type | 4X2 | |
| Persons in Cab | 2+1 | |
| Whole Vehicle Main Parameters | Overall Dimensions (LxWxH) (mm | 6920×2136×2265 |
| Inner Dimentions (LxWxH) მმ | 5140x2100x2000 | |
| Wheel Base (mm) | 3800 | |
| Wheel Track (front/rear) (mm) | 1730/1615 | |
| Whole Vehicle Main Performance | Max speed(km/h) | 95 |
| Maximum Slope to Climb (%) | ≥28 | |
| Fuel Consumption (L/100km) | ≤16 | |
| Weight Data | Curb Weight (kg) | 2920 |
| Rated Payload (kg) | 5580 | |
| Gross Vehicle Weight (kg) | 8500 | |
| Engine | Model | Cummins, ISF3.8s5154 |
| Emission | Euro V | |
| Type | Four-cylinder, Diesel, BOSCH common rail | |
| Type Four-cylinder, In-line, DI, Diesel Displacement (L) | 3.76 | |
| Rated Power (hp) | 154 | |
| Max. Torque | 491/1200-1900 | |
| Gear Box | Model | ZF6s500，6+1, Mechanical |
| Clutch | Type | Hydraulic switch/ Diaphragm spring clutchφ350*φ220 |
| Rear Axle | Main reducer ratio | 4.3 |
| Suspension | Front suspension/ Leaf spring number | 2,85 Non-independent, 3 unit with shock absorber |
| Rear suspension/ Leaf spring number | 6 Non-independent, 8+6 unit with shock absorber | |
| Steering Wheel | Type | Hydraulic steering |
| Brake System | Service brake | Front disk type, rear drum brake |
| Parking brake | Pneumatic | |
| Auxiliary brake | Exhaust brake | |
| ABS | ||
| Wheels and tire | 6+1, 215/ 75 R17.5 | |
| Electronic Device | Rated voltage | 24V |
| Battery | 2X -100Ah | |
| Fuel Tank (L) | 120 | |
| Basic Equipment | Cruise control, mechanical windos, radio, MP3, heater, A/C | |
AUMARK S has completed 1.6 million kilometers of service test. A variety of working condition tests, including durability testing, reliability testing, extreme high and extreme low temperature testing, stability testing, etc.
Performance
Over 4 million Aumark trucks which integrate technology from Cummins and Daimler have been produced since 2003. The key to Aumarks success is its DNA, taking the best products from world best suppliers and building them into a Light Duty Truck that represents exceptional value for money.
At the heart of Aumark is the Cummins engine. All Cummins do is build engines, that’s why they are one of the best and biggest engine manufacturers in the world. And they are standard fit across the entire Foton Aumark range. Cummins has built a reputation producing low emission, light weight, economical and powerful engines, and the perfect fit for the Foton Aumark.
Foton Aumark features ZF transmissions across the range. ZF is recognized as one of the world’s leading transmission manufacturer – the perfect match for one of the world’s leading engine manufacturers.
Power
Wastegate turbocharger: Cummins turbochargers ensure excellent engine performance and fast response over all speed ranges and torque ranges.
High pressure common rail fuel system: Helps the engine achieve accurate, fast power output while reducing noise and fuel economy.
- MAX POWER (Kw /HP): 112Kw / 150 HP（115Kw / 154 HP）
- Max. Torque(N.m): 500 N.m
- Exhaust emission standard: EURO 4
Safety
- Remote controlled central lock.
- Three-point pretension seat belts for all seats protect the personal safety of driver/passengers.
- Driver seat belt Alarm system.
- Halogen front lamps with DRL.
- SRS airbags guarantee maximum protection
- Rear view camera with reverse sensor.
- Equipped four-channel ABS + EBD, the Aumark S enables you to maintain steering wheel control and driving stability during heavy braking.
- Fog Lights.
- Large Rear View mirrors for better view.
- Cruise control.
With the Cummins-powered Aumark S, Foton has re-defined what a light-duty truck should be. Starting with a clean sheet of paper, Foton set out to raise the benchmark for light-duty trucks. No other light-duty truck can provide Cummins’ power, serviceability, reliability, and durability. No other light-duty truck can provide the safety and security of a full air brake system (including an air parking brake) and a 24 Volt electrical system, features that are usually the domain of much more expensive heavy-duty trucks.
With features like lane departure warning, and the ability to change power delivery of the engine while the truck is on the move makes this an attractive proposition.
With one of the widest cabs in its class and a turning circle that will amaze you, this truck deserves to be on your shopping list when you are looking to buy a new truck.
Fully Euro 5 emissions compliant and with added benefits such as the full alloy fuel tank for corrosion-free longer life and backed by a 3 year / 160,000kms warranty the Aumark is what a truck should be – solid, reliable and good value.
The Aumark BJ1088 is fully customisable with versatile body options to make it a productive work tool for everyday use.

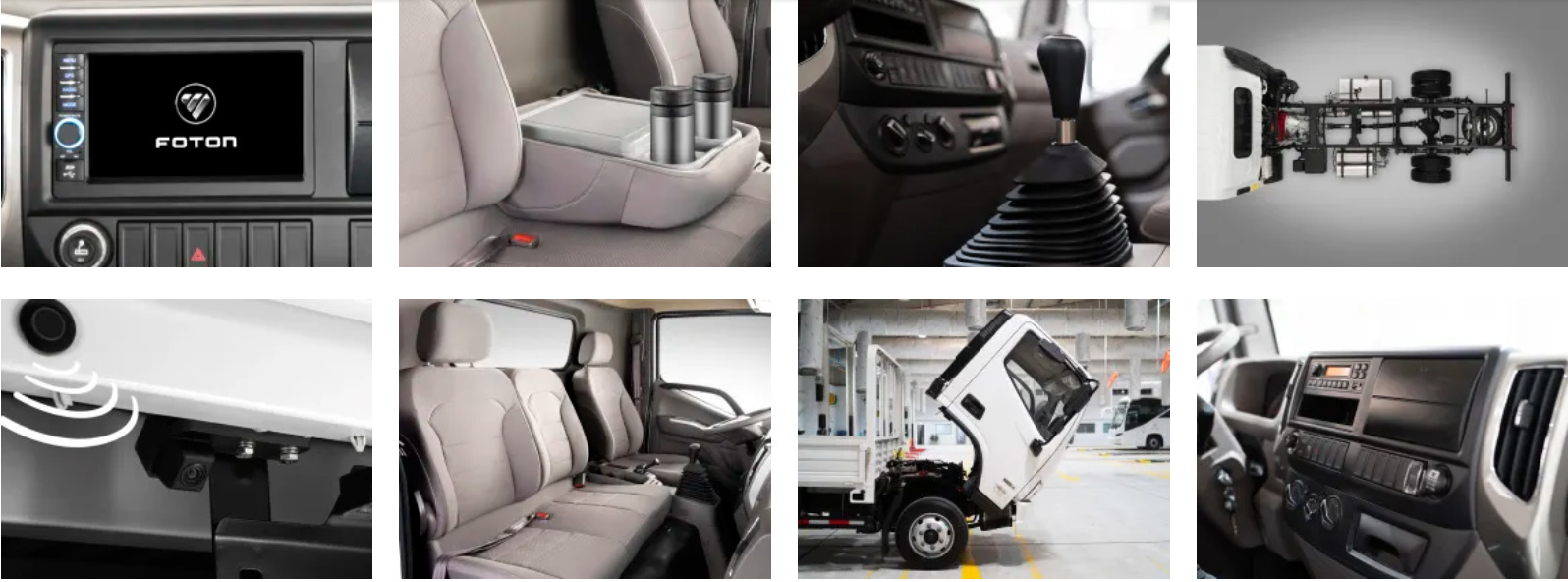

FOTON AUMARK S BJ1088 Interior
