Brand: Brand: Foton Bus China
Dimension：12000*2550*3780
Wheelbase(mm) 6150
Engine Model YC6L310-30, ISME360 30
Suspension System Ail suspension system
Max Power/Rev. (KW (ps) /rpm) 228/2200, 269/2200
download
Whatsapp
Model |
Foton Bus China 52+1 |
| Dimension (LxWxH)(mm) | 12000*2550*3780 |
| G.V.W.(kg) | 17900 |
| Seat No. | 51+1+1 |
| Wheelbase(mm) | 6150 |
| Min. Ground Clearance(mm) | 185 |
| Max. Gradeability(%) | ≥30 |
| Max. Speed (km/h) | ≥120 |
| Fuel Tank Capacity(L) | 400 |
| Fuel Consumption(L/100km) | ≤26 |
| Engine Model | YC6L310-30, ISME360 30 |
| Max Power/Rev. (KW (ps) /rpm) | 228/2200, 269/2200 |
| Gear Box | S6-90, S6-160 |
| Clutch | Diaphragm spring clutch |
| Front Axle | 6.5T |
| Rear axle | 13T |
| Suspension System | Ail suspension system |
| Steering System | ZF power steering |
| Tyre | 295/80R22.5 |
| Air Conditioner | Overhead non-independent air-conditioner (31.000kcal/h) |
| Door and Door Pump | Pneumatic controlled single plate sliding passenger door |

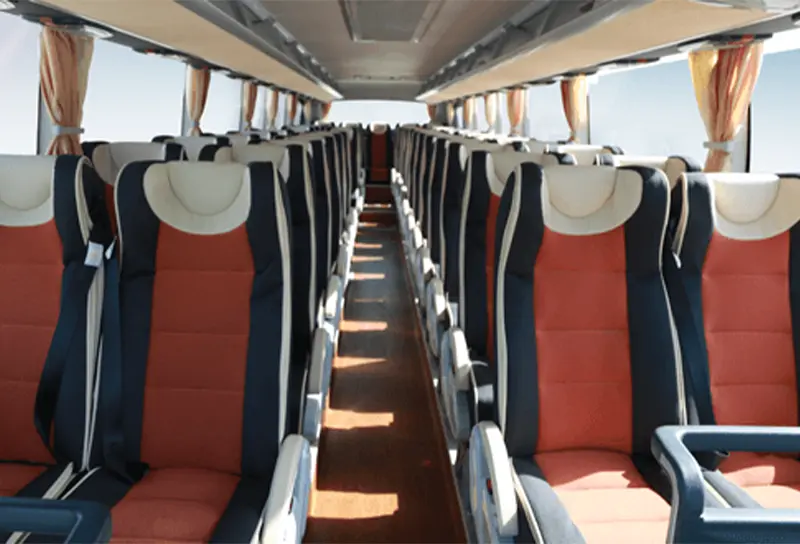

| Body Interior Trimming | Luxury profiled interior trimming |
| Option | Luxury bathroom, driving recorder, automatic fire extinguisher for engine compartment, stainless wheel cover, CAN system. |
Foton Bus China Series Standard Intercity Buses
Foton Bus China series buses of Ouhui have the functions of energy-saving and high efficiency, perfect comfort, safety protection, intelligent vehicle, etc., which fully meet the needs of users.
Foton Bus China Series-Perfect Comfort

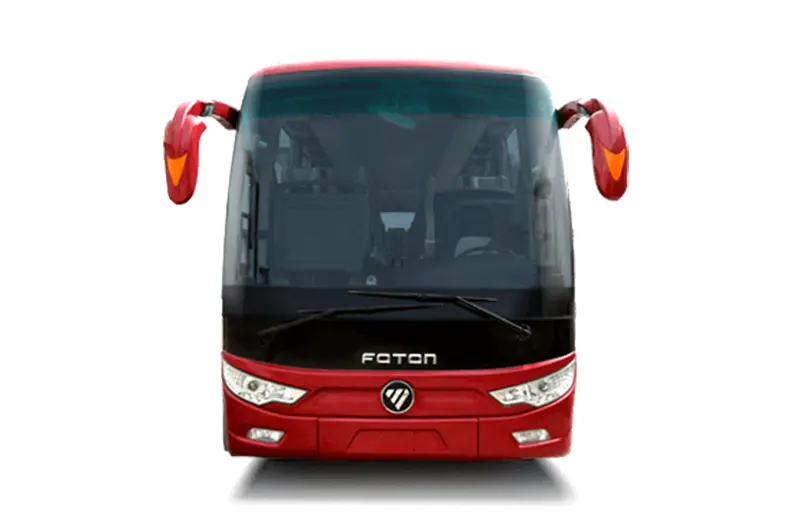

The front shape takes the crown as an image, flowing and dynamic without losing its dominance, representing the determination of the e-bus to be the king of highway buses.
The sharp and innovative angel wing crystal headlamps fully integrate halogen and LED light source design, striking a perfect balance between technological aesthetics and economy.
The 50-degree rearward tilt of the upper windshield (dual windshield version) and the rearward-pressing design of the side tail windows not only equalize the front and rear proportions, but also naturally lead the dynamics to the rear periphery, which is in perfect harmony with the shape of the rear wing.
The mesh panel integrated press type rear air intake grille, modeling and tail window, rear headlights closely echo, more fashionable and dynamic, compared with the traditional opening grille, air intake efficiency increased by more than 20%.

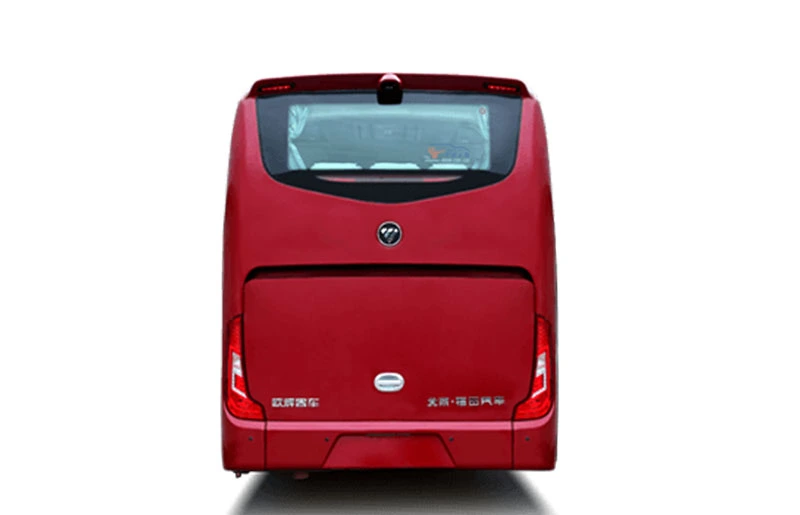

The rear headlamps echo the front headlamps, and the strip and dot-matrix LED design is linked, with a full sense of technology. The shape of the rear enclosure points downward to the stable area of the rear hatch and bumper through the instability of the rear wing and the rear windshield, which is free to change in an orderly manner.
Foton Bus China Series-Safety Protection
The application of electronic active safety technologies such as ABS, ASR, EBS, ESC, TPMS, FTP, ECAS, LDWS, GPS and CAN bus control greatly improves the driving safety of the vehicle.
Foton Bus China Series-Intelligent Vehicle
ePassenger can provide intelligent vehicle terminal to meet the needs of intelligent management and passenger entertainment.
It can effectively record the entire running condition of the vehicle, realize energy consumption and driving behavior analysis, and eliminate illegal driving behaviors such as overloading, getting off and getting on the bus in the middle of the journey, and fatigue driving; it can track the vehicle through the Beidou/GPS satellite positioning, real-time monitor the running condition of the vehicle and its energy consumption status, eliminate hidden dangers of the vehicle, and realize accurate after-sales service.
Through video monitoring, route management, identification and information reminder management means, the safety of people and vehicles can be realized; distributed design and centralized management cascade structure can be realized to achieve the information sharing of stations and vehicles, improve the utilization rate of the existing resources, and meet the customer’s business expansion needs.
Foton Bus China Series-Simple control
Optimized layout of the driving area with wide space; visual CAN bus instrumentation, humanized buttons, comfortable driving, comfortable and convenient operation.
