Engine: ISGE4-350
Displacement: 10,500 CC
Tires / Wheels: 10+1 / 12R22.5
Payload Capacity: 44,000 KG
Crane Max. Lifting Capacity: 6,300 KG
download
Whatsapp
| Type | Truck-mounted Crane | |||
| Telescopic | Knuckle | |||
| SQ2SK2Q | SQ3.2SK2Q | SQ2ZK1 | SQ3.2ZK2 | |
| MaxLifting Capacity(kg) | 2100 | 3200 | 2000 | 3200 |
| Max LiftingMoment(t.m) | 4.2 | 6.72 | 3.2 | 6.72 |
| Maxextensionlength(mm) | 8000 | 8000 | 5000 | 7500 |
| Maxlifting height(mm) | 1000 | 9000 | 6500 | 9000 |
| Crane Weight(kg) | 818 | 1105 | 608 | 1150 |
| Installation Space(mm) | 850 | 850 | 680 | 850 |
| Rotation Angle(°) | 360°rotation | 360°rotation | 370 | 370 |

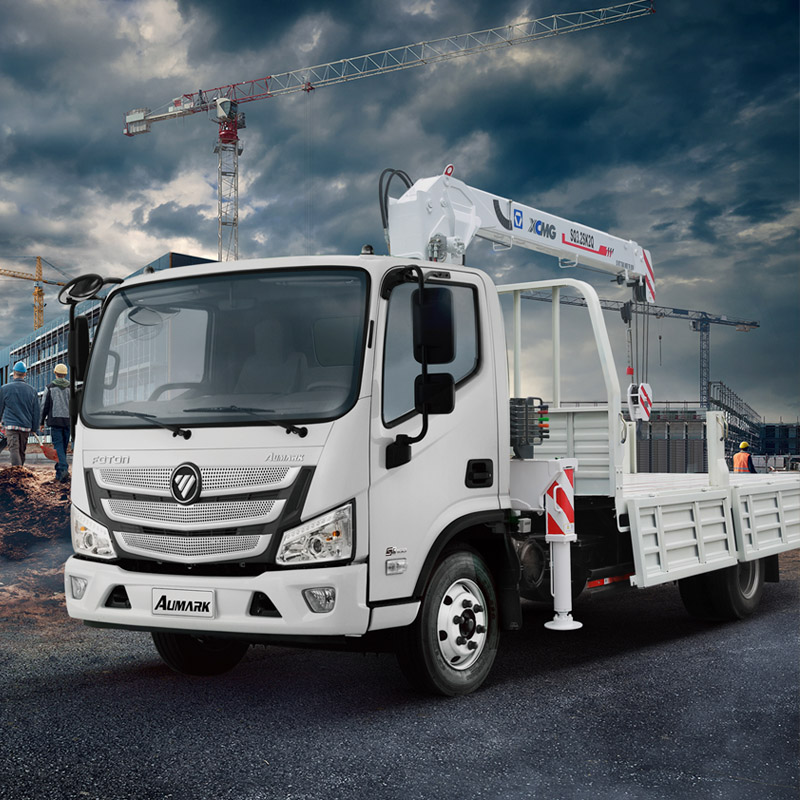

The arm structure consists of straight arm mode and folding arm mode.
The lifting capacity of the crane is 2-5T.
The cantilever crane adopts high strength steel plate and hexagonal boom section,and has higher lifting performance.
