-Foton Mini Truck

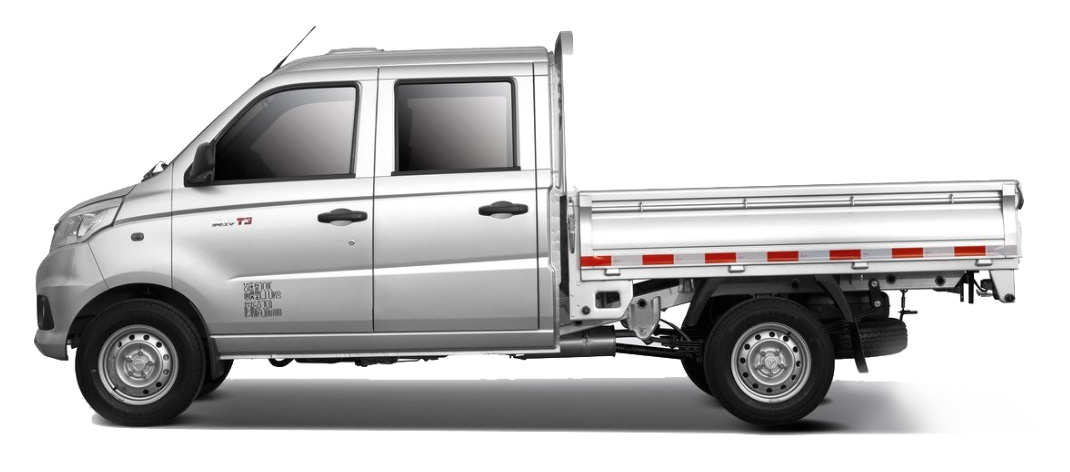

FOTON Gratour T3 Double Cabin

Brand: Foton PT Gratour
Model BJ1036V4AV5-D2
Engine LJ469Q-1AE9, 87HP,Euro 5, gasoline
Box dimension 2100X1560X360mm
Load capacity(Kg): 2000
Left and right hand drive: Left hand drive





    Specification Overview Video
    Complete vehicle
    Model BJ1036V4AV5- D2
    Drive type 4X2
    Wheel base (mm) 3070
    Overall dimension (mm) 4905X1650X1935
    Curb weight (Kg) 1225
    Load capacity (Kg) 2000
    Cabin Double rows,4 doors,standard configuration,2+3 passengers allowable,A/C optional
    Engine Model LJ469Q- 1AE9
    Max.output  (kw/HP) 64/87
    Max.torque  (N•m) 118@ 4000RPM
    Displacement (ml) 1249
    Emission standard Euro 5
    Description In-line, 4 cylinders,water cooled,4 strokes,gasoline engine
    Gear box MR513B,manual,5 forward & 1 reverse gears
    Driving axle Load capacity 1875Kg
    Front axle Steering axle,load capacity 670Kg
    Quantity of leaf spring -/5
    Inner trimming
    Standard configuration Lumbar support to the driver
    Adjustable steering wheel
    Electrical system
    Standard configuration CAN bus intellectual electronic control system
    New battery box
    Start/ stop device under the vehicle
    Safety
    Standard

    configuration

    Three points safety belt
    Automatic clearance adjustment arm,tachometer
    Chassis
    Type specification 175R14LT
    Number of tyres 4+1
    Max.vehicle speed (km/h) 115
    Box dimension (mm) 2100X 1560X 360

    FOTON Gratour T3 Double Cabin is the Foton mini truck, with manual box and a minimum fuel consumption.

    Foton has just launched his new Minitruck Gratour T3, which adds to the successful Pickup Tunland, to continue the expansion of commercial vehicles in our country.

    It is a versatile work vehicle, agile, economical, reliable and comfortable that will be offered with the same mechanic and two body options: simple cabin and double cabin.

    It is driven by an efficient 4 -cylinder euro V naftero engine, with 1,249 CC and 16 valves that delivers 86 hp of maximum power to 6,000 rpm and a touch of 100 Nm to 4,000 rpm, all coupled to a 5 -speed manual gearbox. Thanks to its 55 -liter fuel tank, it gives very good autonomy both in city and on route, which can exceed 700 km without the need to stop at the service station.

    Equipped with electronic direction, the Foton Gratour allows an agile driving and an excellent load capacity, with a very good march comfort that gives it its independent and rear McPherson type front and rear -rear -type suspension of rigid axis with hydraulic elastics and shock absorbers. It has measured tires 175 R14.

    The simple cabin version has two seats, and for its largest box (2800 x 1560 x 360 mm) a load capacity of 1,339 kg, while the double cabin has 5 seats (two forward and three behind), and A load capacity of 1,320 kg in its box (2100 x 1560 x 3600 mm).

    All versions are equipped as standard with double airbag and ABS with electronic braking distribution. They also have radio with USB input, air conditioning, front and rear fog lights, and headlights in height.

    Designed to facilitate loading and download tasks, both versions of Gratour T3 have the sides of the folding load box.

    This Foton model has a 3 -year or 100,000 km guarantee.



    FOTON Gratour T3 Interior
