Wheelbase (mm): 3575+1350/3575+1350/3575+1350
Discharge remains rate (%): 0.6
Vehicle dimensions(L×W×H):9020x2495x3920
GCW(kg):34
download
Whatsapp
| Foton LOXA L9 6×4 Mixer Truck Specification | |||
| Dimensions parameters | Vehicle dimensions(L×W×H) | 9020x2495x3920 | |
| Chassis dimensions(L×W×H) | 8380x2495x3280 | ||
| Drum geometric dimensions(L×diameter) | 5312×2300 | ||
| Wheelbase | 3575+1350 | ||
| Weight parameters | GCW(kg) | 34 | |
| Vehiclecurb weight(kg) | 14.21 | ||
| Chassis curb weight(kg) | 9.5 | ||
| Main performance parameters | Work performance | Feeding speed | 3 |
| Feeding height (mm) | 3725 | ||
| Discharge speed(m3/min) | 2 | ||
| Discharge channel rotation range(° ) | 180 | ||
| Mortar density relative error(%) | ≤0.8 | ||
| Aggregate denisty relative tolerance(%) | ≤5 | ||
| Collapsing slump(mm) | 20 | ||
| Residual rate(%) | ≤0.8 | ||
| Non-spill climb%（full load） | 0.06 | ||
| Basic configuration | Body and electricity | Cab | H4-2490 平顶/Standard roof |
| Power train | Engine | ISGe4-350 | |
| Gearbox | 9JSD200TA | ||
| Chassis | Frame | 225/320x90x(8+7) | |
| Suspension | 前front 9/后rear 12 | ||
| Tire | 315/80 R22.5 20PR | ||
LOXA WITH EFFICIENT, BUILDING THE FUTURE

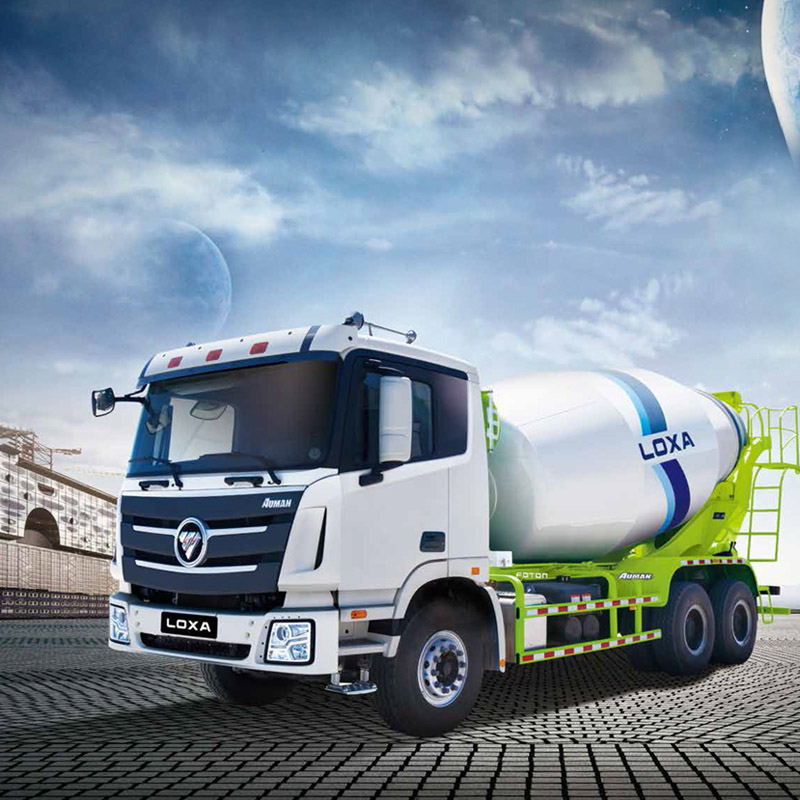

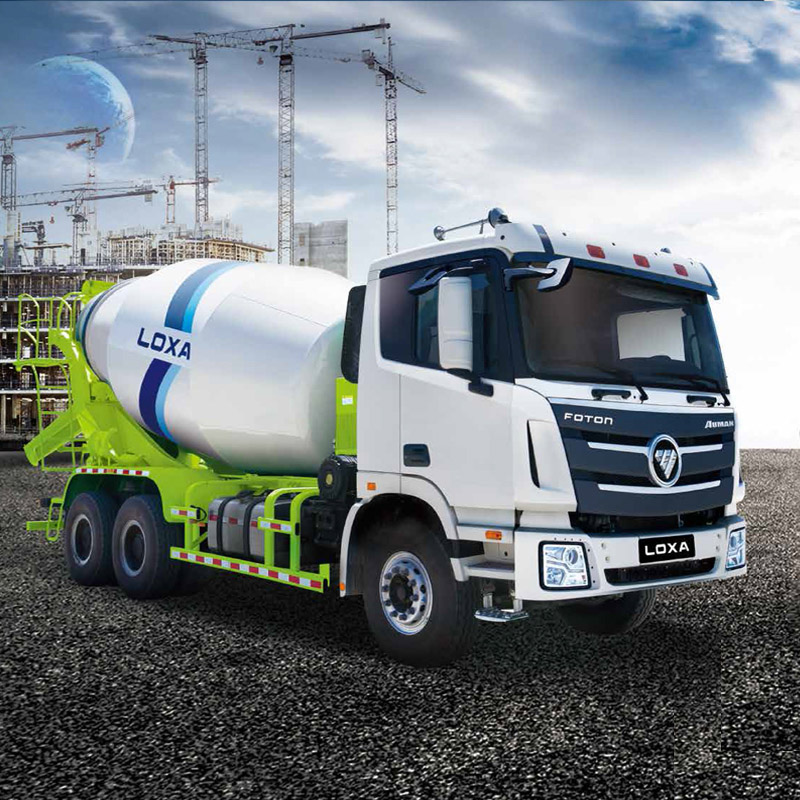

Foton LOXA L9 Mixer Truck provides large construction machinery including pump machinery and hoisting machinery. The truck crane covers 20t-50t hoisting capacity, pump truck reaches 27m-56m and the mixer truck volume ranges from 6m3 -12m3. The LOXA plant is established by German technologies with annual design total capacity of 16,000pcs.
Industry-leading mixing technology ensures even mixture of concrete and low participation rate; molded blades of mixing drum is designed by optimized logarithmic spiral and cylindrical spiral to ensure concrete homogeneity to avoid segregation with participation rate not above 0.8; heightened and extended blade arrangement increases loading capacity by additional 1m3 even on a steep slope and increases volume utilization by 10%.
As a new generation products of Beiqi Foton group, The L9 series combines the technology of China, Germany and USA. It adopts the integrated manufacturing system of Europe and America, the supply chain includes Cummins, Rexroth, Wabco, Knorr, Valeo, SACHS and Donaldson. All the products are reliable, efficient, energy, safe, and comfortable,
●Design Integration
●Manufacturing integration
●Service Integration
●SUPER RELIABLE
High attendance rate.
The annual attendance rate is up to 90%.
●SUPER EFFICIENT
Higher work efficiency resulting in the saving of 50h/a.
●SUPER ENERGY-SAVING
Overall fuel saving up to 12% or $3480/a
●SUPER PERFORMANCE
Guaranteed Personal Safety Guaranteed Money Making
●SUPER SAFE
Healthy Driving Fatigue Avoidance
1/Integrated Development of EU and US Technologies
LOXA integrated global R&D teams (China, US, and Germany) for the development of the product. Its power technology came from Cummins, its chassis technology came from Daimler, and its concrete mixer technology came from LOXA Research Institute in Germany. The vehicle is based on an integrated design and has reliable quality.
2/Integrated Manufacture Based on EU and US Technologies
This is a digital factory manufacturing engine, chassis, and concrete mixer products. The high-quality products came from advanced technologies of China, US, and Germany. The integrated quality ensures reliable manufacture.
Daimler’s manufacture management system is adopted. On site there are German experts providing guidance. Each vehicle shall go through 36 inspection processes before leaving the factory. They include three validation processes in product development, three check processes in materials supply, 27 check processes in production, and three check processes in sale, with the purpose of guaranteeing good product quality.
3/Global Golden Supply Chain Providing High-strength Wear-resistant Materials
70% of the key assemblies and parts of the onboard pumping system are international-brand, such as the Stiebel transfer case, Rexroth hydraulic pump and valves, IFM controllers and displays, and HBC remote control.
4/High-strength Tank Body and Vanes
The mixing drum is completely made of high-strength steel. The tank body and vanes are made of the 520JJ high-strength wear-resistant material. The tank body has good welding quality, with the service life of three or four years or 50,000 to 60,000 cubic meters of concrete.
5/Very Robust Bearing Frame
The bearing frame is made of B610L high-strength alloy steel and pressed once into shape. Its width is up to 879mm or 856mm. Its three-layer side members of better bearing performance are patent.
