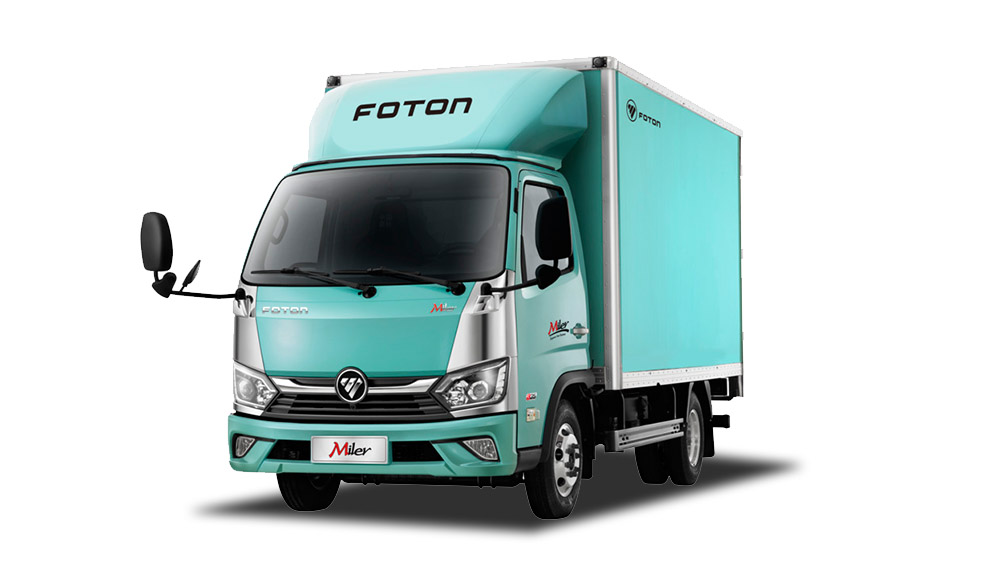

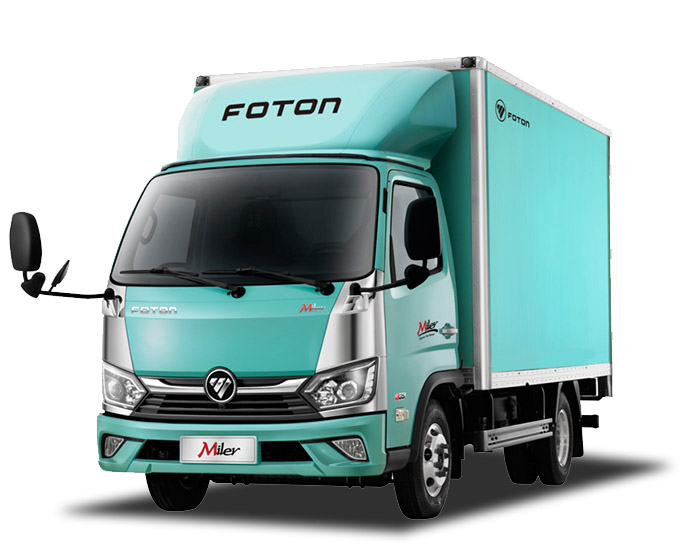

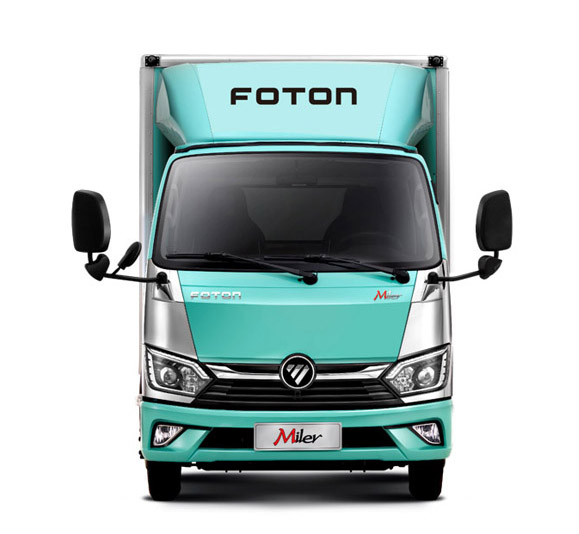

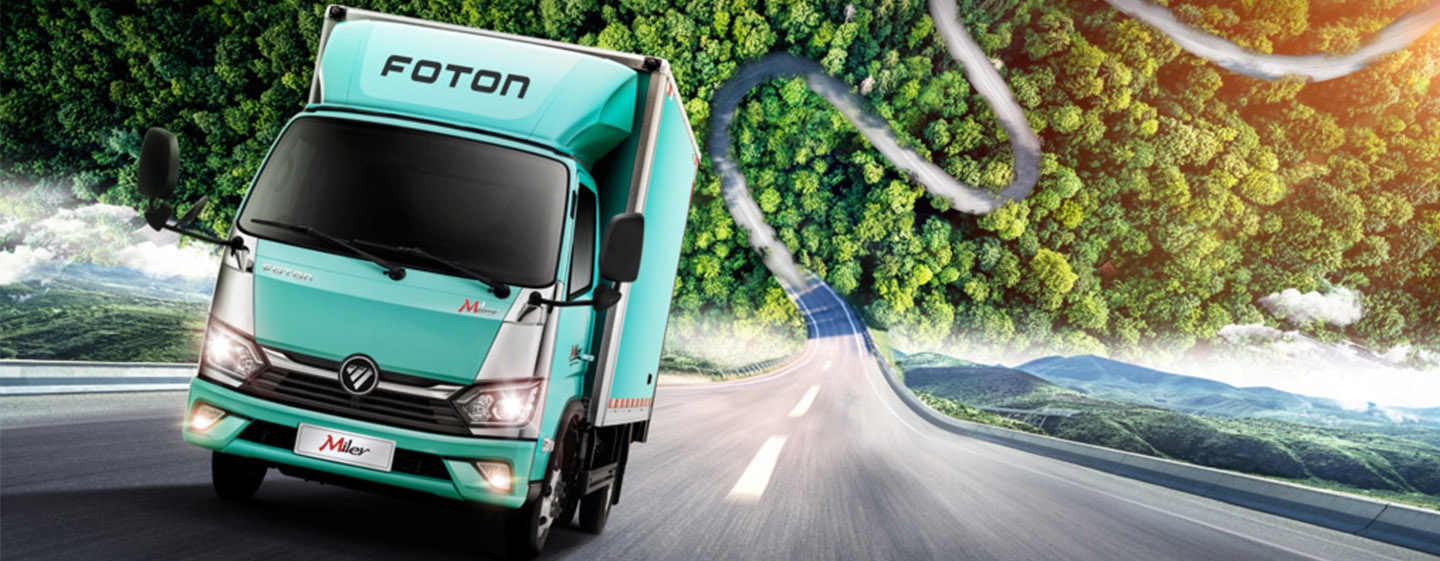

Brand: Foton Miler
GVW: 3.5T
Loading weight:2T
Left/Right-hand drive: Left/Right-hand
Engine: Engine: 4F25, displacement: 2.499 L
Rated power/speed: 96 kW/3,000 r/min
Torque: 320 N.m/1,000 r/min–2,800 r/min
download
Whatsapp
Brand |
Foton Miler |
|||
| Model | BJ 1035 V5JV5-05 | |||
| Body | Single Cabin | Single Cabin | ||
| Engine | Model | DAN20L | DAN20L | |
| Emission | Eur. II | Eur. II | ||
| Fuel type | Gasoline | Gasoline | ||
| Power ( KwZrpm ) | 106 / 6000 | 106 / 6000 | ||
| TDrque ( N-mZrpm ) | 195 / 4400 | 195 / 4400 | ||
| Displacement (ml) | 1998 | 1998 | ||
| Transmission | DAT25R ( 5MT ) | DAT25R ( 5MT ) | ||
| Size parameter | ||||
| Design body external dimension (mm)- Flat Box | 5165 x 1950 x 2135 | 5585 x 1950 x 2135 | ||
| Cargo compartment Dimension (mm)- Flat Box | 5165 x 1950 x 2135 | 3815 x 1850 x 400 | ||
| Design body external dimension (mm)- Closed cargo Box | 5200 x 1950 x 2725 | 5620 x 1950 x 2725 | ||
| Cargo compartment Dimension (mm)- Closed cargo Box | 3380 x 1850 x 1800 | 3815 x 1850 x 1800 | ||
| Wheel base (mm) | 2700 | 3000 | ||
| Capacity parameter | ||||
| GVW (kg) | 3495 | 3495 | ||
| Kerb weight (kg) – Chassis | 1455 | 1485 | ||
| Kerb weight (kg) – Flat Box | 1765 | 1815 | ||
| Loading weight (kg) ( including persons ) | 2040 | 2010 | ||
| Payload | 2T | 2T | ||
| Capacity ( Person ) | 2 | 2 | ||
| Front axle | 1T | 1T | ||
| Rear axle | 2.5T | 2.5T | ||
| Rear axle ratio | 5.375 | 5.375 | ||
| Basic configuration | ||||
| Interior trim | Half-inclusive | • | • | |
| Brake clearance self – adjusting arm | . | • | ||
| ABS | • | • | ||
| Brake type | Front | Disk | Disk | |
| Rear | Drum | Drum | ||
| Electronic accelerator pedal | • | • | ||
| Parking brake type | Central drum | Central drum | ||
| Suspention System | Front | Leaf spring, 3 | Leafspring,3 | |
| Rear | Leaf spring, 3+2 | Leaf spring, 3+2 | ||
| EP polymorphic switch | • | • | ||
| Fuel tank | Plastic ,60L | Plastic ,60L | ||
| Tire Type | 185R15 | 185R15 | ||
| Central lock | . | . | ||
| Electric window | • | . | ||
| Remote control | • | • | ||
| Automatic headlights | • | • | ||
| Electrically adjustable headlights | • | • | ||
| Halogen headlights | • | • | ||
| Cigarette lighter | . | • | ||
| 12V power socket | • | • | ||
| One-key lock car window lift ( no anti-pinch ) | • | . | ||
| Door not closed warning | • | • | ||
| Forgotten key alarm | • | • | ||
| Drivers seat belt not fastened Alarm | • | . | ||
| Option configuration | ||||
| o | o | o | ||
| 9 inch MP5 + reversing image + bluetooth | o | o | ||
| Mechanical shock – absorbing driver’s seat | o | o | ||
| Electric air conditioner | o | o | ||

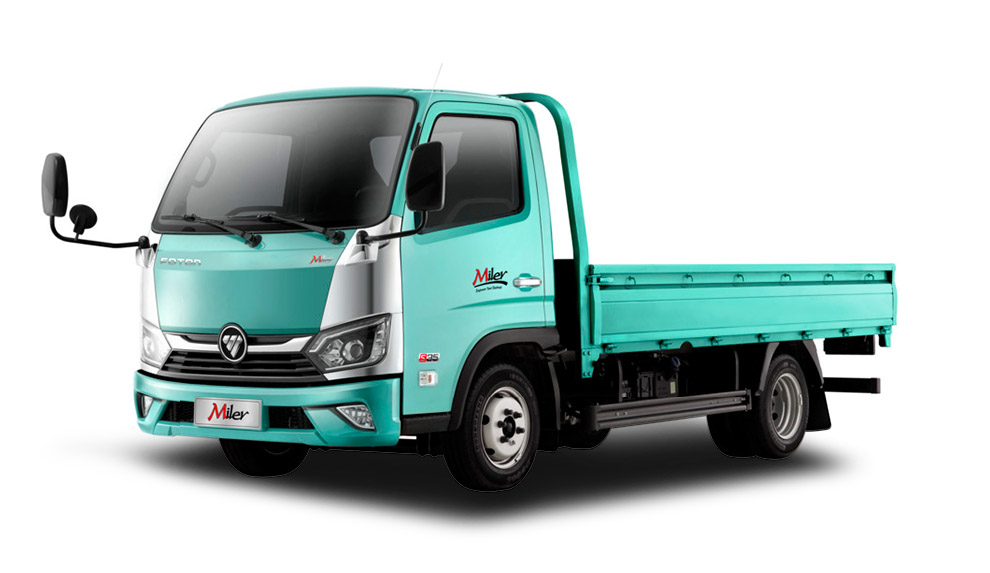

| Flat Box | o | o | ||

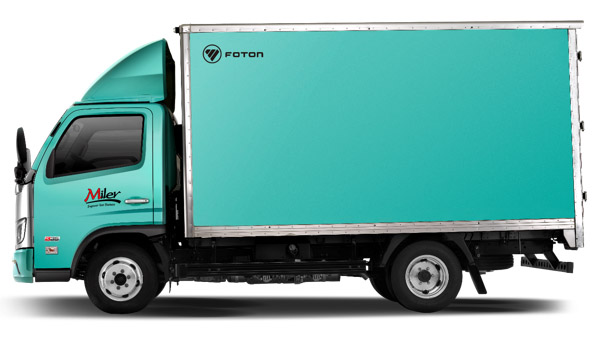

| Cargo Box ( Closed ) | o | o | ||
| LCD Dashboard | o | o | ||
| Daylight | o | o | ||
| Electric adjustable rearview mirror | o | o | ||
| Reversing radar + Craise | o | o | ||
| PU seat | o | o | ||
Foton is the world’s leading, China’s largest commercial vehicle enterprise.
To satisfy the demands of international consumers for urban logistics and transportation, Foton has set many years of truck building experience, absorbed cutting-edge technology from Europe and the US, and created Miler — a high-end light-duty truck brand, which boasts high quality, high performance, high flexibility, high economy and low emission.
Miler’s story
Urban logistics and transportation is trending with the rising demand of last mile delivery.
With the development of the economy, technology, and living standard, the demand for urban logistics and transportation is emerging fast.
Miler series integrates Daimler, ZF, and other international leading brands’ technology, with all-round upgraded systems for power, chassis, electronics, and body, to meet the upgraded needs of users for urban logistics with excellent high quality and high efficiency.

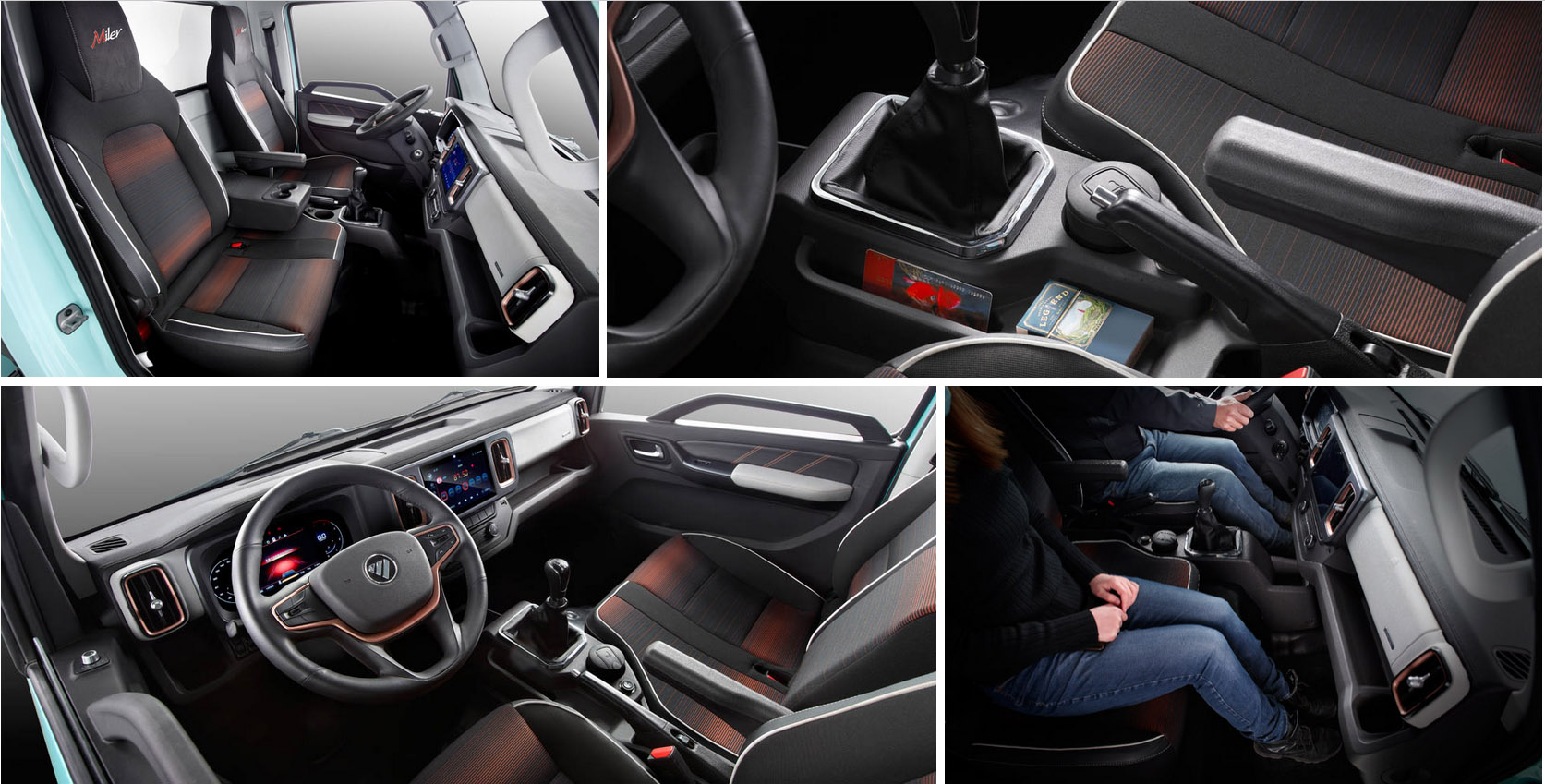

Foton Miler Interior
Customized Miler for you
1. Co-creation between factory and customer
20,000+ advice from light-duty truck users has been gathered;
Based on operation big data of Foton‘s millions of urban distribution users both in China and abroad;
“Customer-oriented” and 3 years of co-creation between factory and customer, to build a user-defined super truck.
2.Directional R&D
The R&D team of Foton Research Institute has spent three years building a new technology platform targeting low cost, high efficiency, high income, and high comfort, aiming at more than 20 subdivided urban distribution scenarios and 80+ working conditions for light-duty trucks.
3.Authority participation
CATARC — China’s automotive R&D authority, is fully involved in the research and development of Miler;
From the initial user investigation, to more than ten times product improvement, to the final vehicle performance verification, Miler, CATARC, and its users achieve comprehensive participation in production, research, and use to create a win-win situation.
4.Extreme road test
The team formed by Miler, Aucan, and CATARC carried out the vehicle performance verification under extreme environments, i.e., plateau (Tanggula Pass, 5,231 m above sea level), high temperature (Turpan, average temperature of 45°C), and cold (Hailar, –40°C) on Miler trucks, as well as 2 million km of comprehensive real-world road testing.

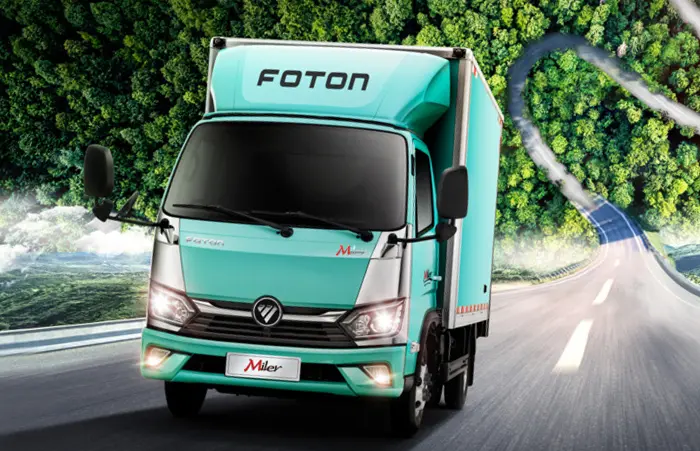

FOTON Miler — a lightweight truck brand for city logistics and distribution
There are more than 700 outlets of sales and service in overseas markets for Foton LDT brand（Aucan engine）, covering more than 80 countries and regions.
