Brand: Foton Truck Mate
Platform : TM3
Body width (mm) : 1520
Cabin: Single row/King row/Double row
GVW: 2.5T-3.0T
Left and right hand drive: Left or right hand drive/ Right hand drive
download
Whatsapp
| Vehicle brand | TM | ||
| Vehicle model | TM1-280 | ||
| Cabin | 1520 Single row seat, tiltable | ||
| Whole vehicle main dimensions | Overall dimensions (LxWxH) mm | 5140× 1680× 1920 | |
| Inner dimensions of the cargo body (LxWxH) mm | 3050× 1560× 360 | ||
| Driving type | 4 × 2 | ||
| Wheel base (mm) | 2800 | ||
| Weight data | Vehicle weight (kg) | 1530 | |
| Capacity weight （kg） | 1800 | ||
| Persons in cab (persons) | 2 | ||
| Gross vehicle weight（kg） | 3330 | ||
| Whole vehicle main performance | Max. speed（km/h） | 110 | |
| Max. slope of climb（%） | ≥25 | ||
| Engine | Model | DAM15L | |
| Displacement（L） | 1.498 | ||
| Rated power（kw/rpm） | 82 | ||
| Rated torque （N.m/rpm） | 142 | ||
| Gearbox | Model | DAT18R | |
| Clutch | Type | single disc,dry type,diaphragm spring; | |
| Rear axle | Type/Main reducer ratio | Speed/ 4.778 | |
| Steering gear | Type/ Speed ratio | Electric power steering | |
| Brake system | Service brake and boostingType | Hydraulic brake；ABS | |
| Parking brake | Central drum brake | ||
| Wheels and tyre size | 175/ R14(4+1) | ||
| Electric device | Rated voltage | 12V | |
| Battery | 100Ah | ||
| Fuel tank (L) | 50 | ||
| Box L x W x H (mm) | – | ||
| Net Cargo Weight | – | ||
FOTON TM3 Simple Cabin – The design and configuration of this mini truck are specialized for the distribution of last mile.

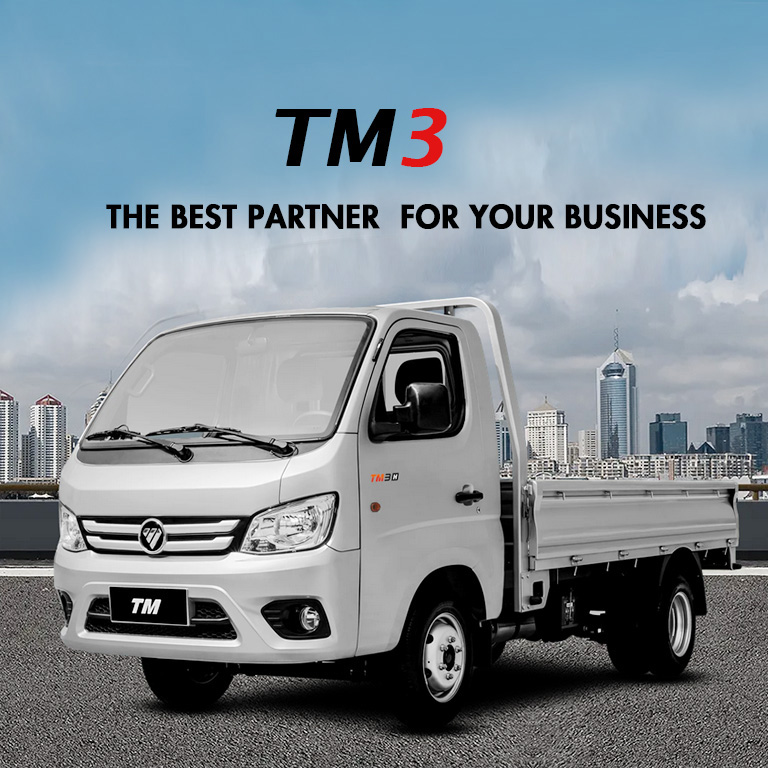

The best partner for your business. The design and configuration of this mini truck are specialized for the distribution of last mile.

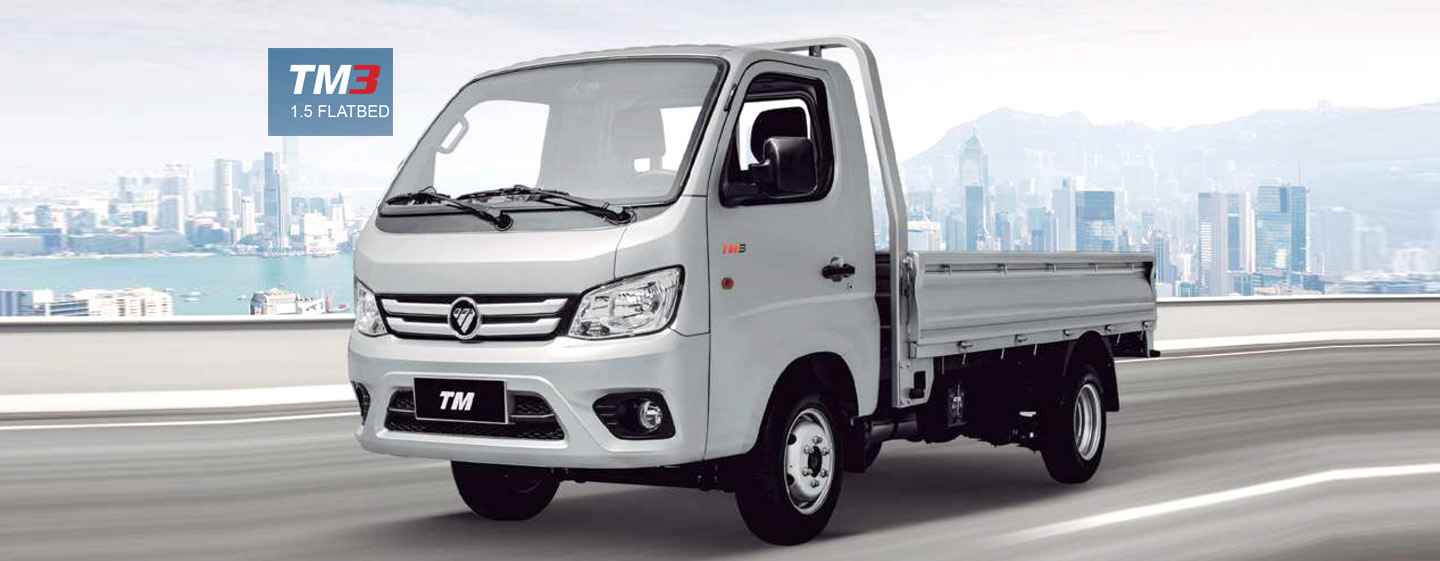

With Foton’s Truck Mate can be saved in each delivery, it has a load capacity of up to 1.5 tons. The trips are more comfortable and safe with their avant -garde cabin, maneuver in any city with a minimum of rotation radius.
FOTON TM3 is a mini positioning truck in urban logistics, its versatility of float in Box, Flatbed and other adaptations allow to meet the needs of transporting drinks, clothing, fruits and vegetables, furniture, daily provisions, hardware stores, construction materials and others estate.
FOTON TM3 is the first mini flat cabin truck to overcome the front shock test in China, this effectively contributes to driver’s safety; Foton adapts the best of global technology to the Mexican market.
FOTON TM3 is the new generation of Foton mini truck product,developed in strict accordance with the product creation process,which has passed the verification of extreme envi ronment of high temperature, cold climate and plateau area and the severe limit road endurance test of 560,000 km. Its B10 life is over 300,000 km.
TM comes in two body widths of 1550mm and 1650mm, two power of gasoline and diesel, two configurations of single rear tire and double rear tires, covering the market from GVW 1.8t to 3.5t.
FOTON TM3 is a mini truck positioning at urban end logistics with high performance , which can meet the transportation needs of drinks, clothing, fruits and vegetables, furniture, daily provisions, hardware and building materials and other goods.

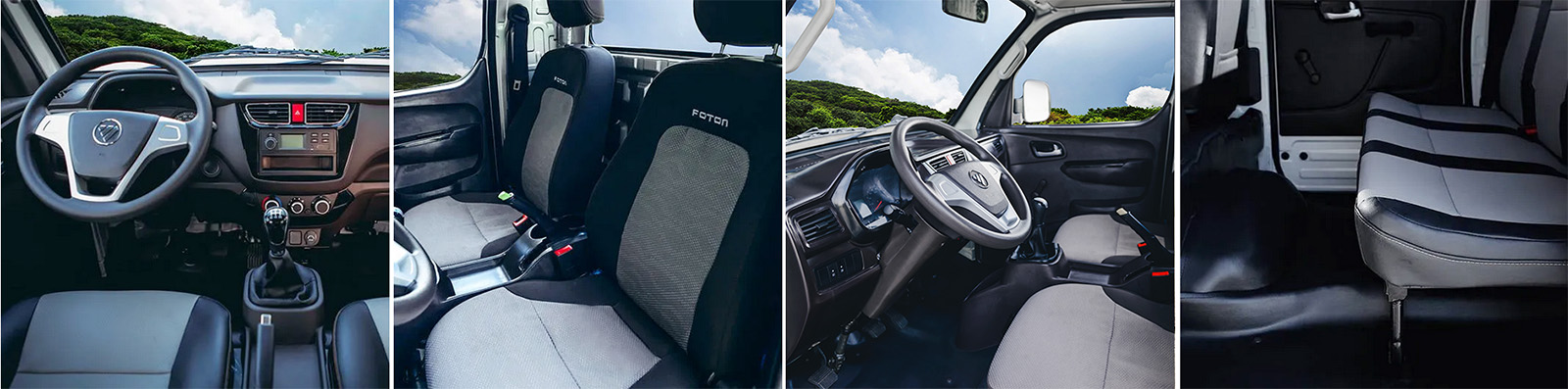

FOTON TM3 Interior
