Brand: Foton Truck Mate
Platform : TM2
Body width (mm) : 1620
Cabin: Single row/King row/Double row
GVW: 2.8T/3.0T-3.5T
Left and right hand drive: Left or right hand drive
download
Whatsapp
| Specification | TM5H | |||||
| Model | Gasoline | Diesel | ||||
| Single Cab | Crew Cab | Single Cab | Super Cab | |||
|
Dimensions |
Overall dimensions (mm) | 5005× 1725× 1925 | 5175× 1725× 1935 | 4550× 1725× 1945 | 5005× 1725× 1925 | 5055× 1725× 1945 |
| Cargo dimensions
(Internal) (mm) |
3300× 1710× 360 | 2700× 1710× 360 | 2820× 1610× 360 | 3300× 1710× 360 | 3100× 1710× 360 | |
| 3300× 1710× 1700 | 2700× 1710× 1700 | 2820× 1610× 1700 | 3300× 1710× 1700 | 3100× 1710× 1700 | ||
| Wheelbase (mm) | 2850 | 2850 | 2400 | 2850 | 2850 | |
| Weights | GVW (kg) | 3460 | 3490 | 2690 | 3404 | 3404 |
| Curb Weight (kg) | 1530 | 1670 | 1560 | 1730 | 1740 | |
|
Engine |
Engine model | DAM15L | DAM15L | 4A2- 88C53 | 4A2- 88C53 | 4A2- 88C53 |
| Displacement (mL) | 1498 | 1498 | 2156 | 2156 | 2156 | |
| Power
(kW/ rpm) |
82/ 6000 | 82/ 6000 | 65/ 3200 | 65/ 3200 | 65/ 3200 | |
| Torque
(N ·m/ rpm) |
142/ 4500 | 142/ 4500 | 240/ 2000 | 240/ 2000 | 240/ 2000 | |
| Transmission | Type | 5MT | 5MT | 5MT | 5MT | 5MT |
| Tires | Quantity | 6+1 | 6+1 | 6+1 | 6+1 | 6+1 |
| Model | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | |
| Suspension | Front | Leaf spring | Leaf spring | |||
| Rear | Leaf spring | Leaf spring | ||||
| Brakes | Front disc, Rear drum | Front disc, Rear drum | ||||
| Power steering | Hydraulic power | Hydraulic power | ||||
|
Equipments |
ABS | ○ | ○ | ○ | ● | ● |
| Power window | ○ | ○ | ○ | ○ | ○ | |
| Fog lamp & DRL | ○ | ○ | ○ | ○ | ○ | |
| Air conditioner | ○ | ○ | ○ | ○ | ○ | |
| Leather seats | ○ | ○ | ○ | ○ | ○ | |

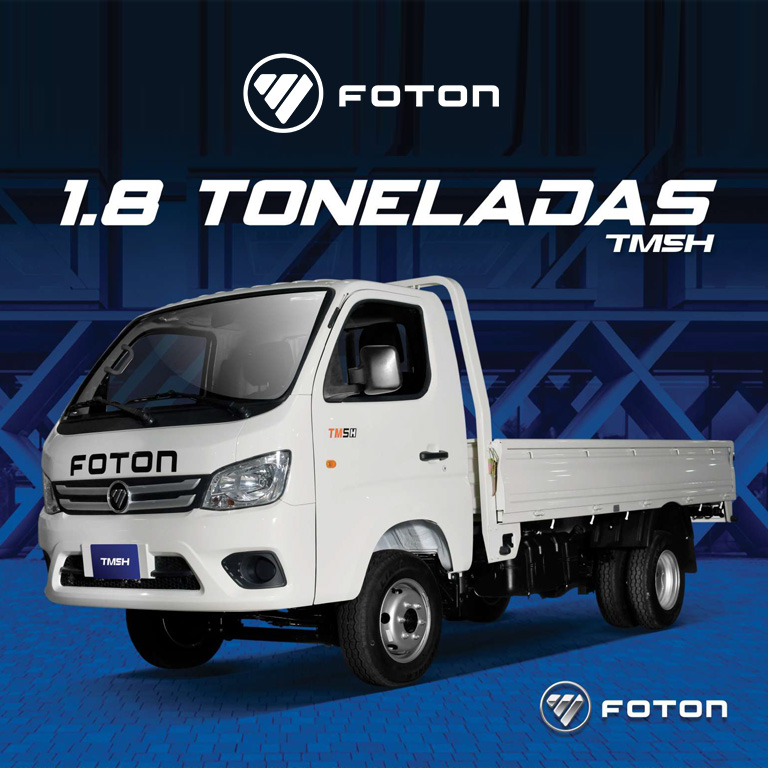

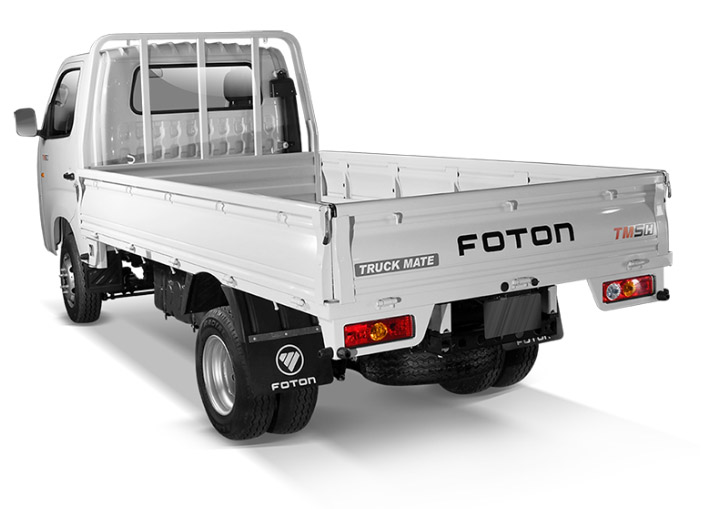

FOTON TM5H – more capacity, more efficient
The new FOTON TM5H/more simple cabin, is designed and equipped to obtain greater capacity and better work performance, optimizing your business more efficiently. The time, costs and improvements in the delivery service decreases. It is designed to provide comfort and security, ideal for extended management days.
With more equipment
FOTON TM5H has air conditioning, 3 -pointed safety belts, two speakers, radius with USB input and aux, remote control opening in all its doors. Everything you need to work with greater comfort and security.
Design, comfort and performance.
Superior equipment, insured comfort.
Excellence in security performance.
FOTON TM5H Colors

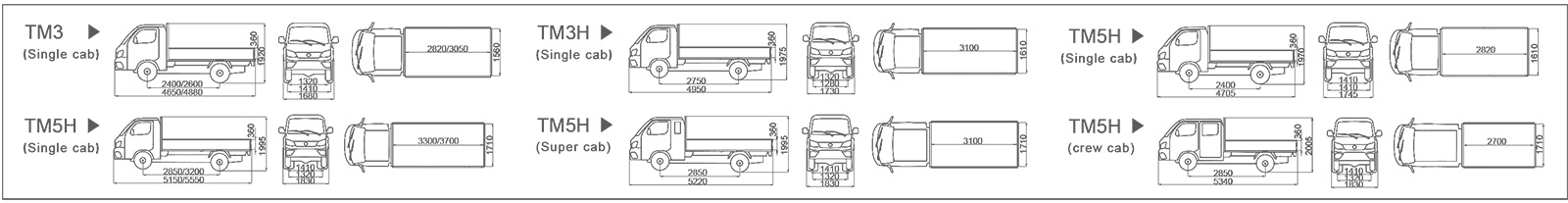

FOTON TM5H Dimensions

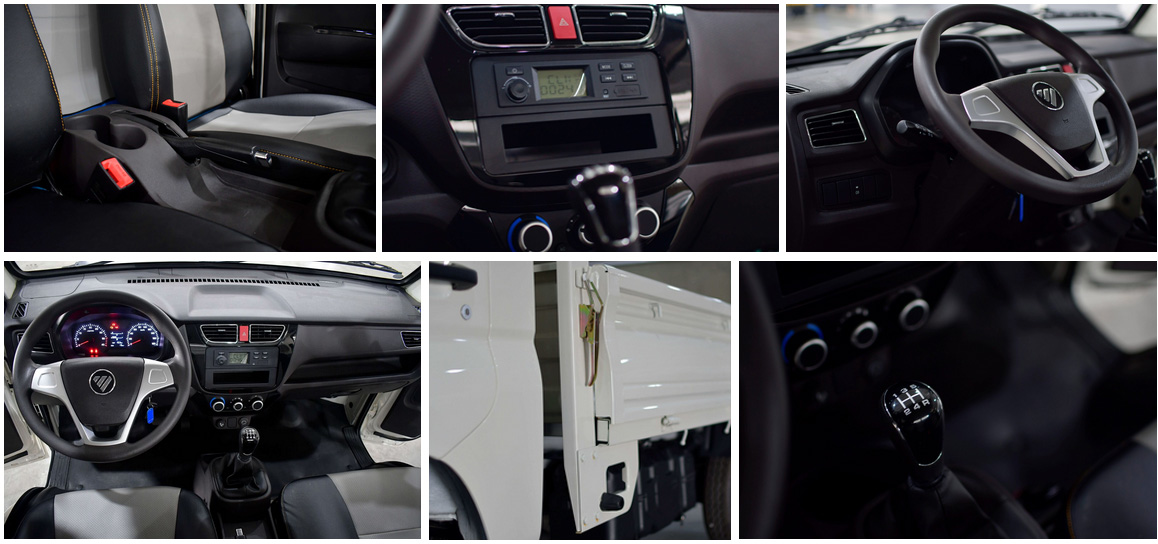

FOTON TM5H Interior
Click to view more FOTON Trucks >>
*Referential photo. The characteristics and equipment can vary.
