Engine: ISF 2.8/ISF 3.8
Fuel Type: Diesel
Carrying Capacity :1167/985
Seat :14/9 seats
Driving Types: 4*2
Emission :Euro IV/II
Overall length :5990/5015 mm
download
Whatsapp
| Parametertype | Main data | |||
| Vehicle sizes | Overall length mm | 5990 | 5015 | 5735 |
| Overall width(excluding rearview mirrors)mm | 2000 | 2000 | 2000 | |
| Top type -Overall height(unloaded) mm | Medium-topcab-2415 | Medium-topcab-2430 | Medium-topcab-2445 | |
| Wheelbase mm | 3750 | 2933 | 3350 | |
| Tread (front/rear)mm | 1740/1704 | 1740/1704 | 1740/1704 | |
| Front/rear overhang mm | 993/1247 | 993/1089 | 933/1392 | |
| Attitudeangleofvehicle(unloaded) | 0.6 | 0.9 | 0.7 | |
| Trafficability | Min ground clearance(fully loaded)mm | ≥160 | ≥160 | 150 |
| Rampangle(fully loaded) | ≥15 | ≥19.8 | 30 | |
| Approach angle (fully loaded) | ≥18.8 | ≥18.8 | ≤21.5 | |
| Departure angle (fully loaded) | ≥15.5 | ≥20.8 | ≤11.9 | |
| Minimum turning radius m | ≤13.5 | ≤11.5 | ≤6.1 | |
| Masses | Seating capacity | 3/6/12/14/15/17/18 | 3/6/7/9 | 6 |
| Curb weight kg | 2332(14 seats) | 2315(9 seats) | 2320(6 seats) | |
| Carrying capacity | 1167 | 985 | 1230 | |
| Gross mass kg | 3499 | 3300 | 3550 | |
| Power system | Fuel type | Diesel | Diesel | Diesel |
| Model | ISF 2.8 | ISF 2.8 | 4JB1T | |
| Displacement L | 2.8 | 2.8 | 2.8 | |
| Power kw/rpm | 120/130(3600) | 96(3600) | 81(3600) | |
| Max.torque N.m/rpm | 360(1400-1800) | 280(1400-1800) | 280(1400-1800) | |
| Maximum speed(fully loaded)km/h | ≥143 | ≥130 | ≥120 | |
| Acceleration time(fully loaded0-100km/h)s | ≤29 | ≤39 | ≤37 | |
| Maximum gradeability% | ≥35 | ≥30 | ≥30 | |
| Composite fuel consumption L | ≤9.5 | ≤9.5 | ≤10.5 | |
Foton TOANO was developed in Foton automotive technology R & D center in Stuttgart, Germany, adhering to the German century legendary gene technology and refined vehicle manufacturing concept, and creating a brand new European series large VAN TOANO.
Foton TOANO inherited German quality, carried world-class Cummins power, introduced Daimler quality management system, was manufactured in smart factory with contactless, automated and zero emission, as well as created high-quality partners for users.
TOANO is a very German name and has unique European series large VAN ability, achieving variable model function, diverse space as well as passenger vehicle’s safety and comfort and business vehicle’s multifunctional utilization.
VAN is also known as a multi-purpose commercial vehicle platform consisting of enclosed van, bus, van and special modified vehicle. It is also equipped with many functions such as large passenger space, comfort of passenger car, and large carrying van.
Large VAN refers to the full-size large scale commercial vehicle, long head design, having more than 10 seats; medium VAN has flat head design, having more than 10 seats; mini VAN is defined as 7 seats commercial vehicles.
Standards of large VAN:
Super large space
Reasonable layout
Surging power
Complete safety
Super strong carrying capacity
Good fuel economy
European series large VAN “guest vehicle for state head”
–European series mid-to-high-end large VAN, multifunctional features, and omni-directional functions can be applied to city logistics and transport, and also be used for business reception and passenger commuting, but also for a large number of police explosion-proof, medical ambulance, communications command, school bus and other types of conversion purposes.
–Providing a vehicle having standard body (wheelbase) and lengthened body (wheelbase) and based on rear drive to satisfy the needs of different customers.
–European series light van market No.1 new army.
TOANO can be divided into 5990 Body and 5015 Body.
TOANO 5990 Body targets on mid-to-high-end market to meet the passenger and reception needs of consumer freight and public service.
TOANO 5015 Body targets on mid-to-high-end market to meet the reception needs of commercial services, down to cover commercial freight logistics low-end market.
“European series mid-to-high-end business” light vehicle
–Decent modeling design: full and powerful molding surface, dynamic and smooth style, passenger vehicle interior design.
–Dynamic performance: energetic power performance, stable and reliable, convenient maintenance.
–Driving safety: a solid and reliable vehicle structure, travelling safety and stability.
–Carrying capacity: more spacious and comfortable space, more storage room, stronger carrying capacity.

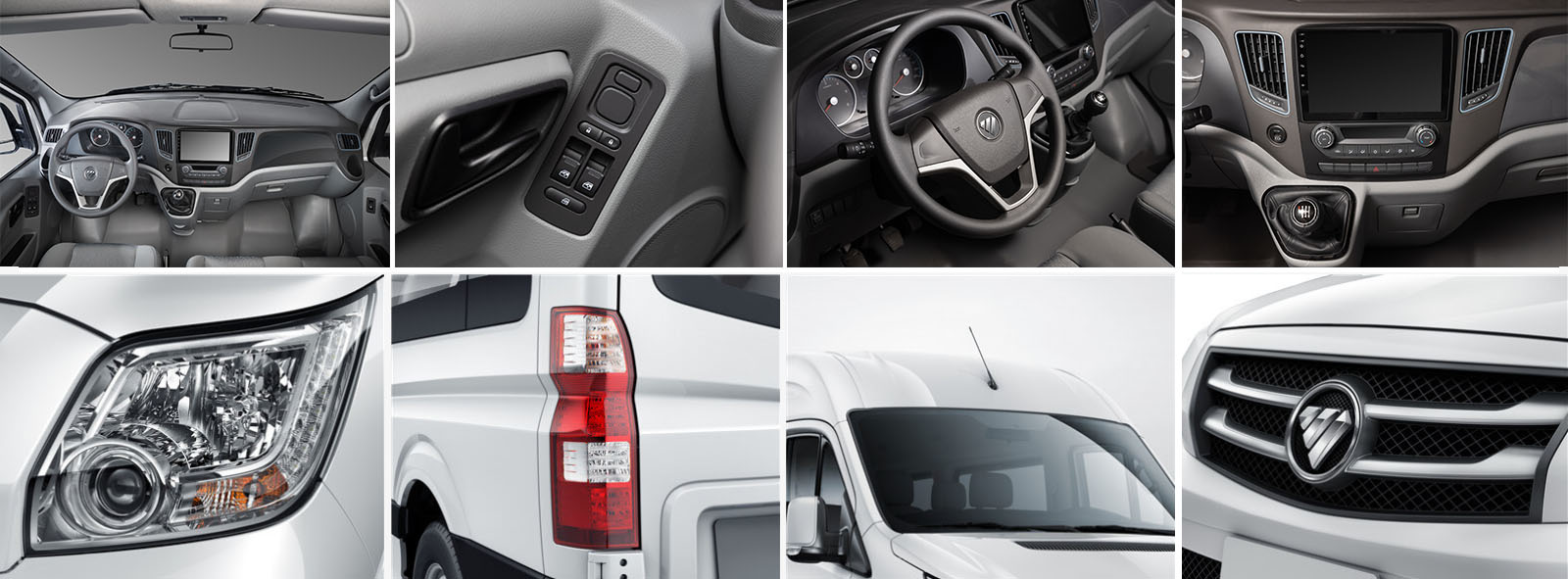

Foton TOANO Interior

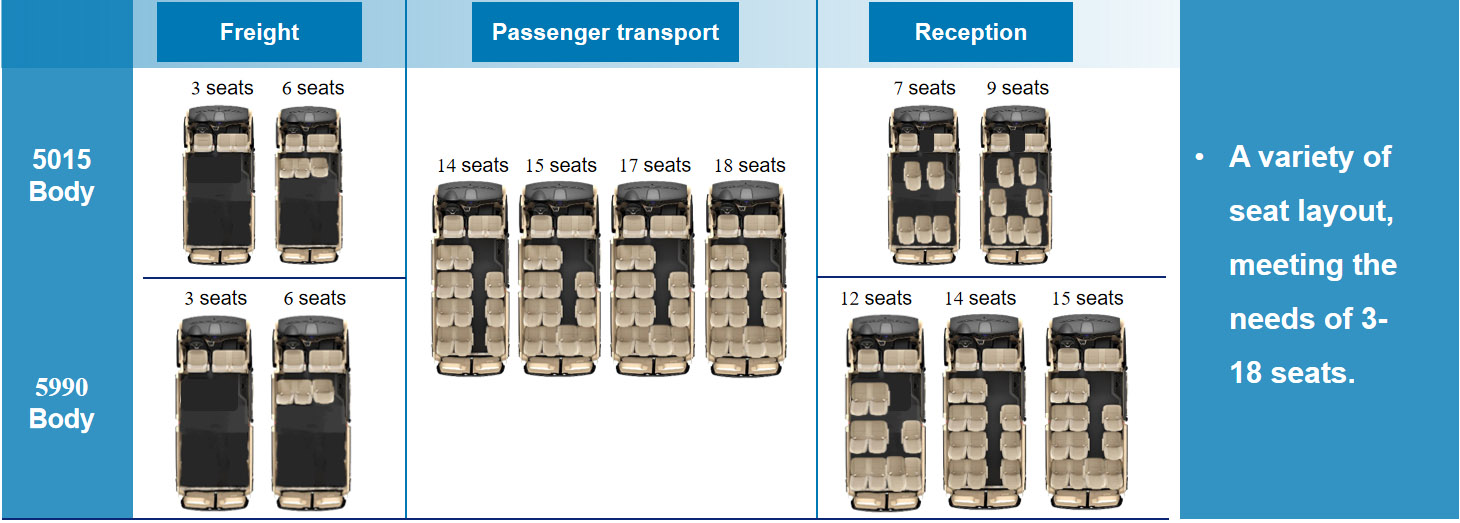

Foton TOANO Seat
Mohe Covenant Foton TOANO Ice and Snow Challenge
