Drive type:4*4
Body dimensions, mm :5310*1880*1860
Cargo compartment dimensions, mm :1520*1580*440
Wheelbase, mm :3105
Front overhang, mm :1025
download
Whatsapp
| Product model | BJ2037Y3MDV-S | |
| Type of driving | 4×4 | |
| Body | Double-cabin | |
| Main dimensions of whole vehicles | Overall dimensions (LxWxH)mm | 5310*1880*1860 |
| Internal body dimensions (LxWxH)mm | 1520x1580x440 | |
| Minimum ground clearance (at full load, mm) | 200 | |
| wheelbase (mm) | 3105 | |
| Weight data | Empty weight (kg) | 1950 |
| Rated payload (kg) | 1025 | |
| Number of people in the cabin | 5 | |
| Gross vehicle weight (kg) | 2975 | |
| Engine | Model | ISF 2.8 |
| Maximum power(Kw) | 120(3600rpm) | |
| Maximum torque (Nm) | 365(1800-3000rpm) | |
| Electrical system | Skid plate under the engine | |
| Protection under the oil tank | ||
| vehicle axle | Rear axle | DANA AXLE series | Without LSD |
| 16 inch aluminum alloy. | ||
| 265/70R16 | ||
| Full size aluminum spare wheel / 1 pcs | ||
| Leather (with airbag) | ||
| Multifunction steering wheel | With airbag + with all multifunction buttons | ||
| Brake safety | ABS+EBD | |
| Front disc, Rear disc | ||
| Exterior trim | Front bumper | New “Wing” front grille model |
| Rear bumper | ||
| Wheel arch | ||
| Brake light in high position | ||
| side pedal | ||
| Front fog lamp | ||
| daytime running light | Electric adjustment with defrost function, manual folding | |
| Chrome mirror | ||
| Bodywork inside | Type of spray | |
| Interior trim | Seat | First row seat (leather, manual, 4-position headrest with abdominal support) |
| Second row seat (Leather + fixed backrest + rollover cushion) | ||
| with pretensioner and force limiter (3-point type) | ||
| Second row seat belt (common seat belt (3 point type, middle seat with 2 point type) | ||
| sun visor | Driver side sun visor with bag. chemical fiber | |
| rear screen | With defrost function | |
| Opening and closing of parties | Vehicle doors and windows | Electric window/one-touch control at the bottom. Electric front door and rear door. |
| One-key up / with anti-pinch function | Driver side | |
| Remote car closing / Remote window closing | ||
| A flat key + a folding key | With remote control and without lock | |
| Electrical system | Electric clock | Clock |
| Airbag on the driver’s seat | ||
| Airbag on the co-pilot’s seat | ||
| Lighter | 1 | |
| AM/FM radio + MP5 (AUX + USB) + Reverse screen player + bluetooth port | ||
| 4 | ||
| Reversing radar | Buzzer | |
| Air conditioner | AC. Cooling and heating automatic mixer type electric air conditioner. | |
| air heater | ||
Tunland is equipped with Cummins’ power system, Asen and Getrag drive system,consistent with the European standard of discharge (Euro IV-Europe V), with the double-
arm independent suspension, and longitudinal plate spring, with a wading depth as much as 600mm, and a ground clearance of 210mm, able to realize the cross-country ideal perfectly. The technical configurations such as TCS, Bosch ABS + EBD, HBA, automatic lighting of the headlamps, GPS global positioning system, etc. have brought more driving pleasure. The multi-storage space design has fully demonstrated the care for details and personalized needs.
The Foton TUNLAND S is Foton’s next-generation pickup.
This Foton TUNLAND S is equipped with the latest technology and is extremely reliable. Thanks to its special design, the Tunland offers you impressive visibility and an extraordinary driving experience .
Displaying perfection in every detail, the Tunland is truly in a class of its own. For both work and play, the Tunland is the ideal choice for the discerning driver.
- 2.8L Cummins engine,
- 120HP,
- APA + CEB,
- Dual Airbag Bucket Liner
CUMMINS ISF 2.8 DIESEL ENGINE
The powerful 120KW Cummins ISF 2.8 diesel engine in the Tunland is the most powerful in the category of engines with a displacement of less than 3.0L. It also has a maximum torque of 360Nm , which is 22.5-60% higher than similar products . Therefore, the Tunland can easily withstand harsh road conditions.
The Tunland features the latest turbocharger intake system. BOSCH ‘s electronically controlled high-pressure common rail injection system guarantees the best performance.
The powertrain is based on a modular design concept. It has 40% fewer components than other similar products . The engine is also 10% lighter than those used in similar pickups . Thanks to its special design, it operates at extremely low noise and vibration levels. Engine maintenance is easy and cost effective.
4G69 GASOLINE ENGINE
This model is equipped with a 12-hole particle injector and EFI technology.
The exhaust system includes a dual tubular exhaust manifold with a catalytic converter.
The intake system is based on the MIVEC (Mitsubishi Innovative Valve Timing Electronic Control) system with 4 cylinders and 16 valves.
COMFORT
Interior
The interior of the Tunland shows great attention to detail.
High-performance three-dimensional LED lights provide great visual comfort.
A handy 5-speed gear lever makes shifting easy and fun.
Full electronic controls are in place, including a unique locking system.
Convenience
The Tunland is extremely spacious: the interior width is 1880 mm, which gives you a great feeling of driving comfort. The large windshield gives you an amazing field of vision. Rear legroom can easily provide rear seat passengers with 800mm of legroom.
Ergonomic Design: The smart layout and premium air conditioning vents blend perfectly with the overall design, providing you with a pleasant temperature and atmosphere when you sit in the pickup. Tunland’s interior really helps you relax and enjoy the trip.
Adjustable seats: The driver’s seat can be adjusted six ways, allowing you to find the perfect and most comfortable position while driving. Storage space: Extremely large storage space makes travel easy and convenient.
Quality equipment
Adjustable seats: The driver’s seat can be adjusted in six ways, allowing you to find the ideal and most comfortable position while driving.
Multi-functional steering wheel: The steering wheel is equipped with volume control, Bluetooth, cruise control and other common functions, which makes your driving experience convenient and safe.
HiFi entertainment system: The Tunland is equipped with an integrated USB and AUX digital interface, hi-fi equipment as well as a voice control system, giving you the highest degree of comfort.
Adaptable temperature
Thanks to BOSCH’s high-pressure common rail system and the electronically controlled Cummins engine cold start control, starting the engine at -40°C is not a problem.
ABS+EBD
Equipped with BOSCH’s four-channel ABS+EBD, the Tunland lets you retain steering control and driving stability during hard braking.
Child safety seat
This device has been specially designed for children traveling in a safety seat.
Respect the environment
The application of the latest technologies makes the engine extremely environmentally friendly. The engine features ECU (Electronic Control Unit) control technology and uses SCR (Selective Catalytic Reduction), EGR (Exhaust Gas Recirculation) technologies. By using precise mechanisms for measuring and controlling the air intake and combustion process, nitrogen oxide (NOX) and particulate pollution is significantly reduced.
4WD
With the part-time 4×4 system, a part-time 2-speed push button can choose the appropriate mode according to different road conditions.
- 2H mode: normal use on the road
- 4H mode: off-road use on wet or slippery ground
- 4L mode: extreme off-road use
Towing
The Tunland is powerful enough to tow a 2.5 tonne caravan, so you can enjoy life anytime, anywhere.

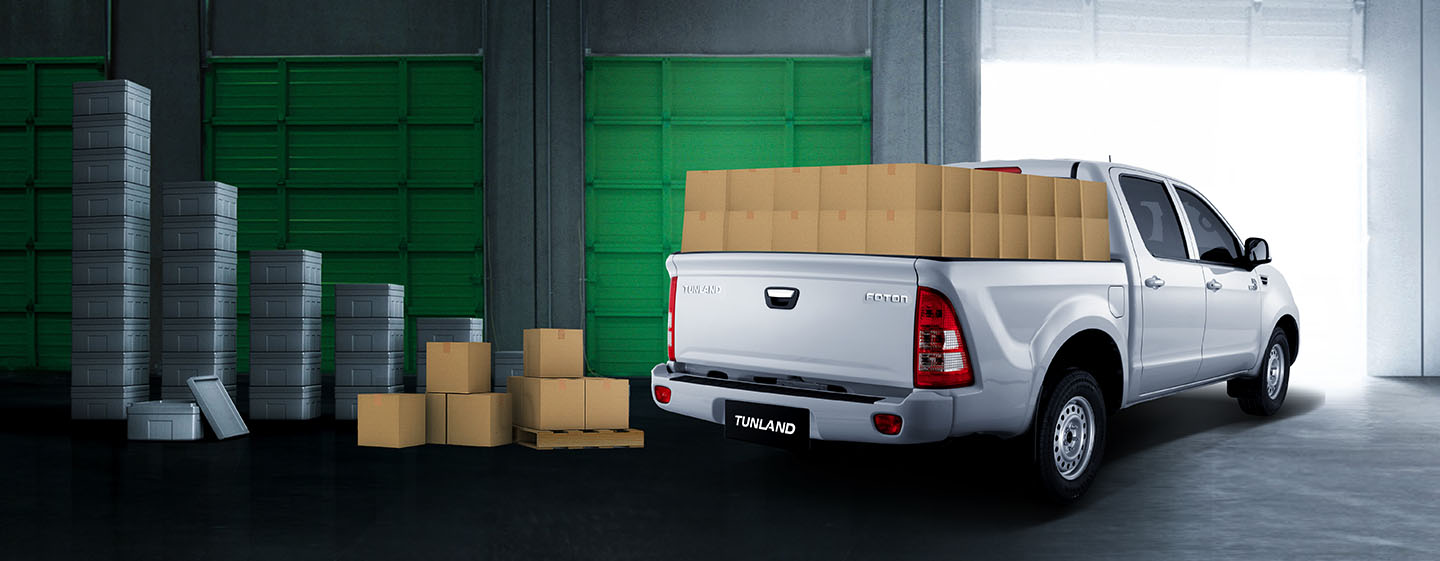

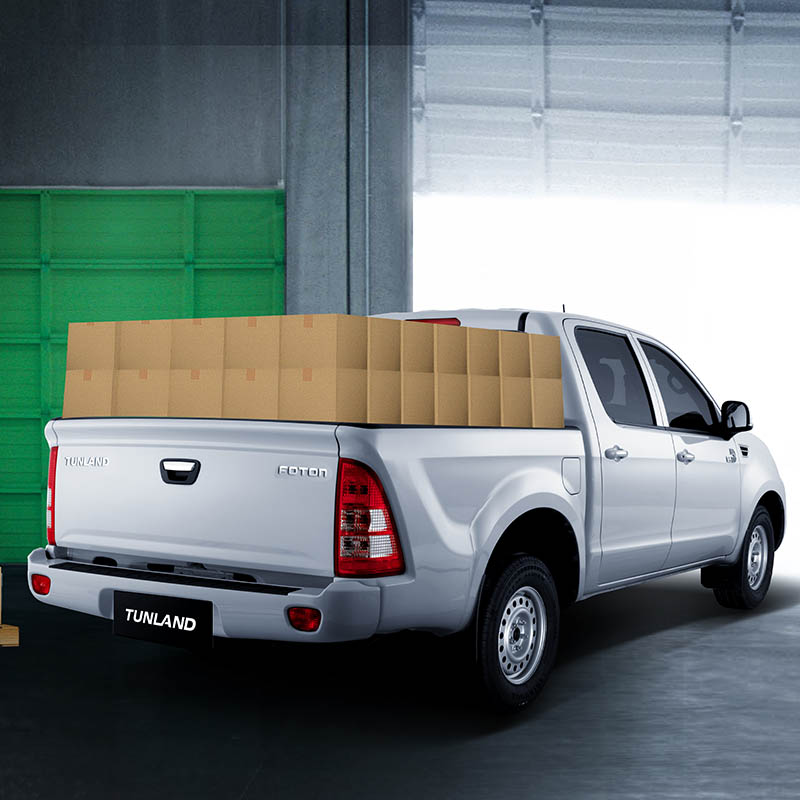

Charge capacity
Tunland’s 4.35㎡ truck is spacious and its loading capacity is up to 1.5 tons.
Foton TUNLAND S
