VEHICLE MODEL | TOANO | VIEW CS2 | VIEW C2 |
SPECIFICATION AND CONFIGURATION | |||
Power system | ISF 2.8 | ISF2.8/4G69/3TZ | 4JB1T/4Y |
Displacement and power(ml/Kw) | 2780/120 | 2780*105/2378*100/2693*120 | 2771*70/2237*76 |
Seating capacity | 3 | 2/3 | 3 |
Gross mass(Kg) | 3499 | 3400 | 3150 |
Wheelbase(mm) | 3750 | 3110 | 3050/2570 |
Wheel tread(Front/rear) | 1740/1704 | 1655/1650 | 1470/1465 |
Overall dimensions(mm) | 5990*2000*2415 | 5380*1920*2285 | 5320*1695*2240 |
4840*1695*2240 | |||
Emission standard | Euro-II/Euro-V/Euro-IV | Euro-IVIZero emission | Euro-II/Euro-IV |
Fuel type | Diesel/Gasoline | Diesel/Gasoline | Diesel |
Tire specification | 215/75R16LT | 195R15C | 195R15C |
Engine model | ISF2.8s4161P | ISF2.8s5141P | BJ493ZLQ4 |
4G69S4N | BJ491EQ4-12k | ||
3TZ | |||
VEHICLE STANDARD CONFIGURATION | |||
Electric window | . | . | . |
Central control lock | . | . | . |
ABS+EBD | . | . | . |
Front and rear A/C | . | . | . |
Foton ambulance is made with one-time molding process and is applied with wholly detachable design. It’s equipped with multiple overhead storage boxes. This vehicle can be internally equipped with diversified professional rescue equipment and its medical treatment compartment features high safety and hygiene and excellent isolation, anti-corrosion, ventilation, and anti-bacteria performances. The reliable chassis and enhanced integral body and chassis guarantee stable traveling, high reliability and durability, and high carrying capacity of the vehicle. The world-class engine is installed to achieve strong power performance and high efficiency and fuel-saving.
With super-large space design, reasonable layout,and reliable quality,View ambulance has gained the consistent appraisal from the customers both home and abroad.The medical treatment compartment features large space and reasonable layout and can sufficiently meet the emergency rescue needs.The ceiling of medical treatment compartment adopts one-time composite material to achieve high water-proof and anti-fouling performances and high composite material to achieve high water-proof and anti-fouling performances and high compartment are made of high-density PVC boards to guarantee high damp-proof and anti-bacterial performance and high environmental-friendliness and hygiene.The compartment is internally illuminated by LED lamps to achieve high energy-saving and efficiency.The individualized designs are offered depending on the demands of diversified customers.
Foton transfer ambulance features standardized appearancecompact upholstery,and high economy and practicability. It’s mainly used to transport the patients in relatively stable condition to the hospitals and only allows some simple medical treatment, including transfusion, oxygen uptake,hemostasis, and bandage,during the transfer.

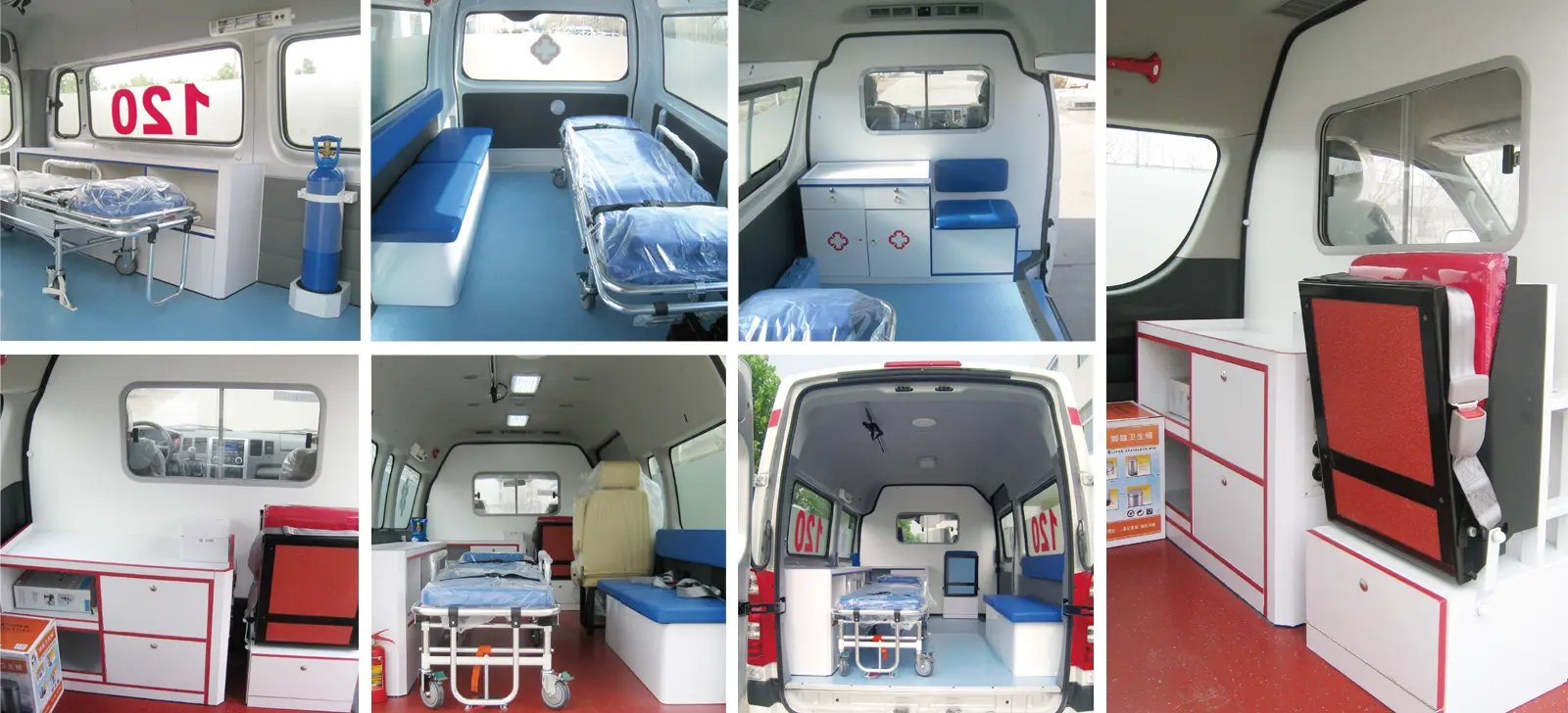

Foton View CS2 Ambulance Interior
