-Transport Vehicle

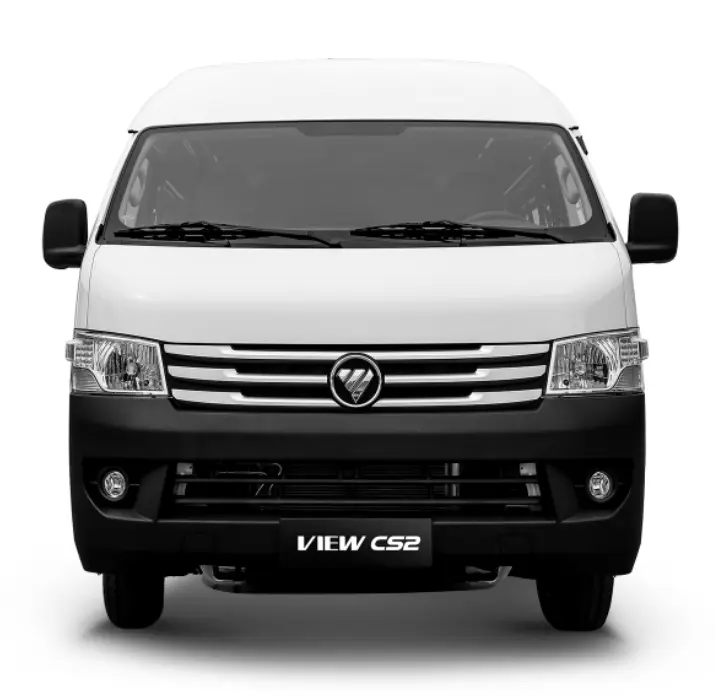

Foton VIEW CS2 Window Van

Fuel Type: Diesel/Gasoline
Emission: Euro IV/V
Gearbox :5TM
Wheel Base :2570/3110
Engine: 4JB1-70 KW / F2.8-96 /110 KW
Seat: 12-19





    Specification Overview Video
    ENGINE DIESEL
    Engine Model 4JB1T
    Displacement 2,771cc
    Rated Power 70kW @ 3600rpm
    Rated Torque 225nm @ 2300rpm
    No. of Cylinder 4, inline
    Air Induction Turbocharged with intercooler
    Compression Ratio 17.4:1
    SUSPENSION
    Front Double Wishbone Independent Suspension Torsion Bar Springs
    Rear Longitudinal Leaf Spring Non-Independent Suspension
    BRAKE
    Front Disc Brake
    Rear Drum Brake
    WHEEL SIZE
    Standard 195/R15C
    DIMENSION
    Overall (LxWxH) (mm) 4840x1695x2240
    Wheelbase(mm) 2570
    WEIGHT
    Kerb Weight 1895kg/1870kg
    Gross Weight 3020kg
    STEERING
    Type Rack & Pinion with Power Assist

    The VIEW CS2 is the 4th generation of Foton’s famous vans brand – View. The View CS2 has a great design and combines performance and comfort.

    Featuring leading technologies such as the Cummins engine, the vehicle provides enterprises, public agencies and individual customers with great value, high efficiency and a fantastic driving experience.

    While the View CS2 may appear similar to other competitors in its class, it is a physically larger van. this allows passenger increased comfort and larger cargo space in an attractively styled van.

    The View CS2 is available in 6 – 18 seat configurations to suit your specific needs. The rear seats can also fold to give a larger cargo area should it be required.

    Technology & Performance

    Cummins ISF 2.8 Diesel Engine
    The View CS2’s powerful 120KW Cummins ISF 2.8 diesel engine is the strongest in the class of engines with displacements below 3.0L. It also has a maximum torque output of 360 N.m, which is 22.5%-60% higher compared to similar products. As a result, it can easily handle harsh road conditions.

    TECHNOLOGY
    The View CS2 features the latest turbocharger intake system. The electronically controlled, high-pressure common rail fuel injection system by BOSCH guarantees the best performance.

    MODULAR DESIGN
    The powertrain is based on a modular design concept. It has 40% less components than other similar products. The engine is also 10% lighter than the ones used in similar pickup trucks. Thanks to its special design, it operates at extremely low noise and vibration levels. Maintenance of the engine is easy and cost efficient.

    Environmentally Friendly

    The application of the latest technology makes the engine extremely eco-friendly.

    The engine features ECU (Electronic Control Unit) control technology and uses SCR (Selective Catalytic Reduction), EGR (Exhaust Gas Recirculation) technologies. By employing precise measurement and control mechanisms of the intake of air and the combustion process, nitrogen oxides (NOX) and particulate matter (PM) pollution is substantially reduced.

    Safety Performance

    The View CS2 features a multilayered shield to provide you with the highest degree of safety during your trip.

    Equipped with BOSCH’s four-channel ABS + EBD, the View CS2 enables you to maintain steering wheel control, shortens the breaking distance and increases the driving stability during heavy braking.

    The View CS2 features upgraded brake lights, electric mirrors, an anti-glare rearview mirror as well as additional devices to ensure road safety.

    Equipped with a 3H high-strength body and strong anti-collision bars as well as reinforced front and rear bumpers, the View CS2 provides you with maximum protection during a collision.

    Dual airbags, a collapsible steering column and three-point seat belts are standard features that ensure the safety of the driver and passengers.

    The View CS2 features a roof emergency escape hatch and a safety hammer is in place with which the window can be broken in case of emergency.

    Introduction of View CS2
    While the View CS2 may appear similar to other competitors in its class, it is a physically larger van. this allows passenger increased comfort and larger cargo space in an attractively styled van.

    The View CS2 is available in 6 – 18 seat configurations to suit your specific needs. The rear seats can also fold to give a larger cargo area should it be required.

    Foton VIEW CS2 Window Van Interior

    Foton VIEW CS2 Window Van-Interior
