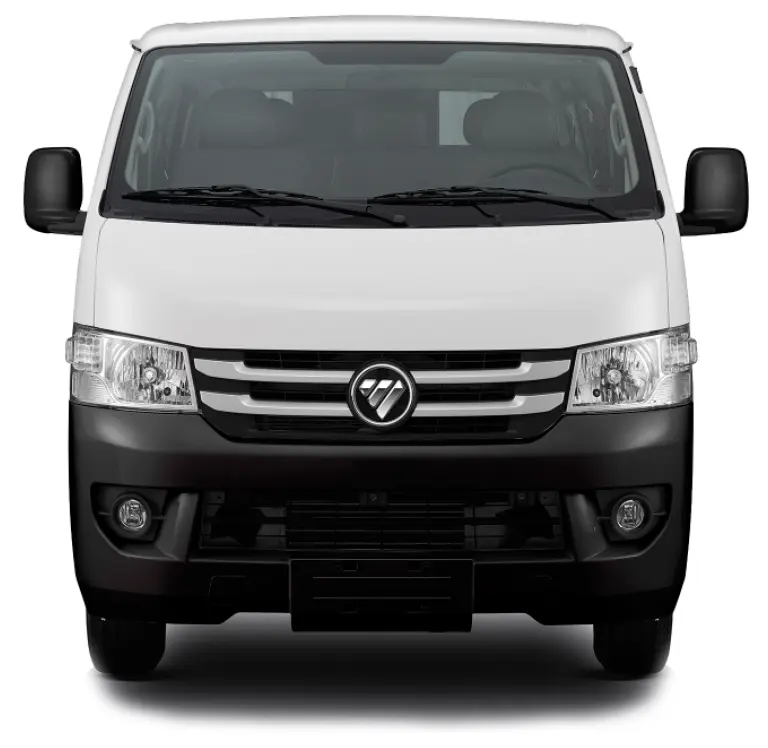

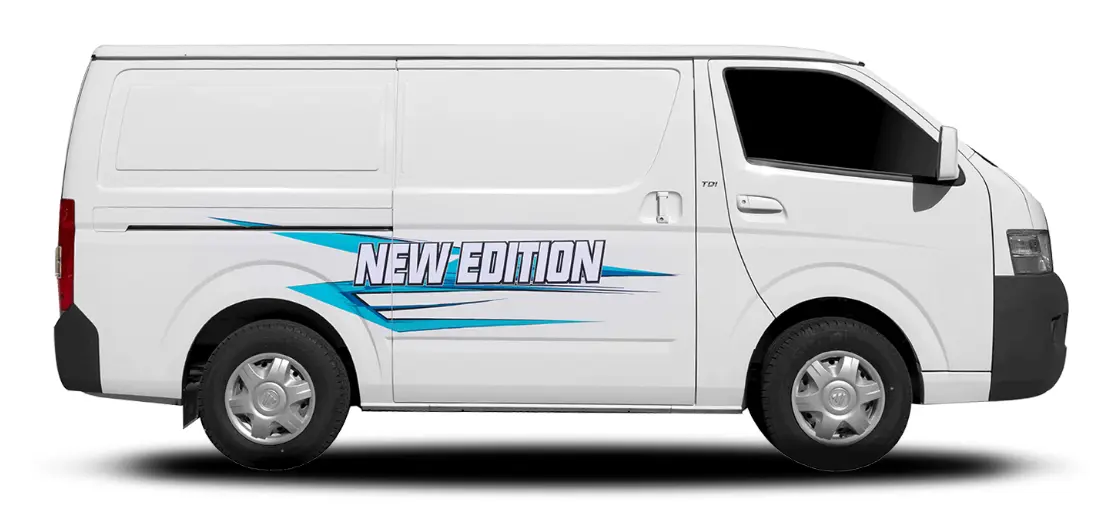

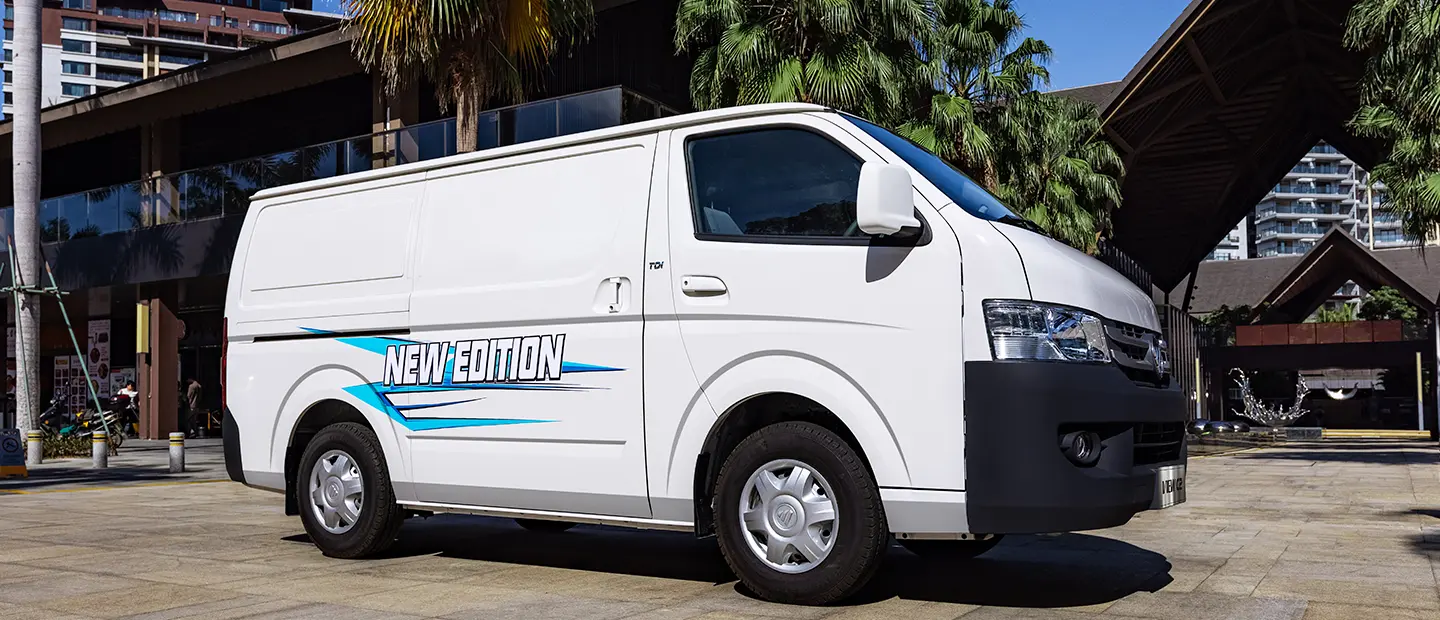

Foton VIEW New C2 Window Van

Brand		VIEW C2
Type / Usage		Cargo
Grade		S
Body		Narrow body flat
Back Door		Lifted back door
Sliding Door		Single sliding door
Engine Model		4JB1T
Engine Emission		Euro IV
Engine Fuel type		Diesel
Engine Power (Kw/rpm)_		70/3600
Engine Torque (N-m/rpm)		225/1800-2300
Engine Displacement (ml)		2771
Transmission		5MT
Main technical parameter
Dimension parameter
Design body external dimension (mm)		4840x1695x1980
Wheel base (mm)		2570
Mass parameter
Total mass (kg)		3020
Kerb mass(kg)		2005
Loading weight (kg) (including persons)		—
Capacity (Person)		3
Seating arrangement		3
Type of the last seat		—
Power performance
Max.speed (km/h)		>120
Fuel economy
Integrated operating condition of 100 km fuel consumption (full load)(L/100km)		>9.4
Function configuration
Chasis system
Wheel assy	Tyre	195R15C
	Steel rim+Cover	•
Brake safety device	ABS+EBD •
Interior trim
Type	Ordinary gray	•
Half a pack / all-inclusive	Half pack of interior	•
Ceiling	PVC+Non-woven	•
Steering wheel	Adjustable angle of the steering wheel	•
	Ordinary PU	•
Seat	Seat fabric \| Knitting	•
	The whole car seat belt	•
	Three-point seat belt of side seat	•
The number of sun visors		2
Body and accessories
Number of side sliding door		1
Front and rear bumpers	Black bumper (With striae)	•
Blind window	Total blindness	•
	Back door	Glass
Door lock	Remote control central locking (Integrated key)	•
Front door	Electric window	•
Outside rear-view mirror	Manual	•
Outside rear-view mirror housing	Black housing	•
lamps and lanterns	high-mount brake lamp	•
Reversing radar(singing)		•
Body sound and light alarms		•
Comfort
Air-conditioner system	Air conditioner \| Front	•
	Warm braw \| Front	•
Audio device	Radio +AUX+USB	•
Number of speakers	2	•
Others
Others	Side outside antenna	•
	Central storage box	•
	Number of cup stand	2

WITH THE CLASSIC, THE ACHIEVEMENTS OF THE FUTURE

After 17 years of quality accumulation, with integration of global landscape design concept in classic vehicles, VIEW set comfort, safety, control and bearing, fashionable large space in one. Two series of wide-body CS2 and narrow-body C2, and 9-16 seats product can meet wider demands for enterprise reception, public transport, logistics and other different business.

The View CS2 Window Van is yet another masterpiece produced by Foton, with a length of up to 6 meters and 18 seats (17+1) coupled with latest Cummins 2,800cc Euro IV turbo-diesel engine that caters to transporting tourist with ample luggage space as well as being suitable for ferrying factory workers and students on a large scale.

Both View C2 and View CS2 vans are labelled as 3E products, namely Ease, Efficient and Excellent. ‘Ease’ is stipulated as impeccable product quality with minimum issues.

The View C2 Panel has a great design and combines performance and comfort.

Featuring leading technologies such as the Cummins engine, the vehicle provides enterprises, public agencies and individual customers with great value, high efficiency and a fantastic driving experience.

Environmentally Friendly

The application of the latest technology makes the engine extremely eco-friendly.

The engine features ECU (Electronic Control Unit) control technology and uses SCR (Selective Catalytic Reduction), EGR (Exhaust Gas Recirculation) technologies. By employing precise measurement and control mechanisms of the intake of air and the combustion process, nitrogen oxides (NOX) and particulate matter (PM) pollution is substantially reduced.

Technology & Performance

4JB1T Isuzu Engine 2.8L
With the technical route of electronic control high pressure common rail, supercharge intercooler, electronic control EGR and entire vehicle DOC, this vehicle meets China Phase IV emission standard requirements; through the optimized combustion and precision calibration, the low speed torque and speed range are enhanced while the vibration and noise are reduced.

Displacement 2.771L
Rated power 70kW/3600r.p.m
Max. torque 225N.m/1800~2400r.p.m

Safety Performance

The View CS2 features a multilayered shield to provide you with the highest degree of safety during your trip.

Equipped with BOSCH’s four-channel ABS + EBD, the View CS2 enables you to maintain steering wheel control, shortens the breaking distance and increases the driving stability during heavy braking.

–The View CS2 features upgraded brake lights, electric mirrors, an anti-glare rearview mirror as well as additional devices to ensure road safety.

–Equipped with a 3H high-strength body and strong anti-collision bars as well as reinforced front and rear bumpers, the View CS2 provides you with maximum protection during a collision.

–Dual airbags, a collapsible steering column and three-point seat belts are standard features that ensure the safety of the driver and passengers.

–The View CS2 features a roof emergency escape hatch and a safety hammer is in place with which the window can be broken in case of emergency.
