MaxLifting Capacity(kg): 2100/3200/2000/3200
Max LiftingMoment(t.m): 4.2/6.72/3.2/6.72
Maxextensionlength(mm):8000/8000/5000/7500
download
Whatsapp

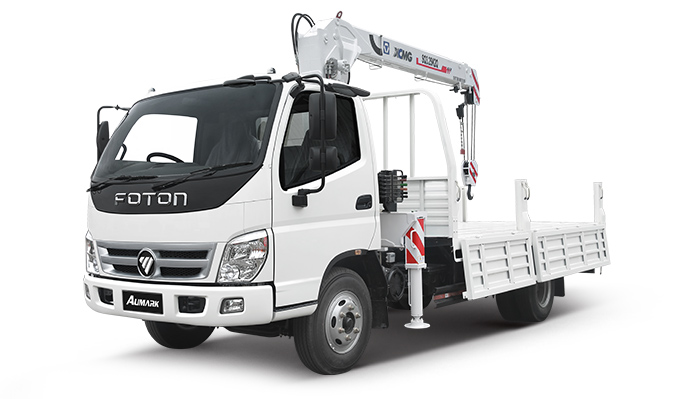

| Type | Truck-mounted Crane | |||
| Telescopic | Knuckle | |||
| SQ2SK2Q | SQ3.2SK2Q | SQ2ZK1 | SQ3.2ZK2 | |
| MaxLifting Capacity(kg) | 2100 | 3200 | 2000 | 3200 |
| Max LiftingMoment(t.m) | 4.2 | 6.72 | 3.2 | 6.72 |
| Maxextensionlength(mm) | 8000 | 8000 | 5000 | 7500 |
| Maxlifting height(mm) | 1000 | 9000 | 6500 | 9000 |
| Crane Weight(kg) | 818 | 1105 | 608 | 1150 |
| Installation Space(mm) | 850 | 850 | 680 | 850 |
| Rotation Angle(°) | 360°rotation | 360°rotation | 370 | 370 |
The arm structure consists of straight arm mode and folding arm mode.
The lifting capacity of the crane is 2-5T.
The cantilever crane adopts high strength steel plate and hexagonal boom section,and has higher lifting performance.
